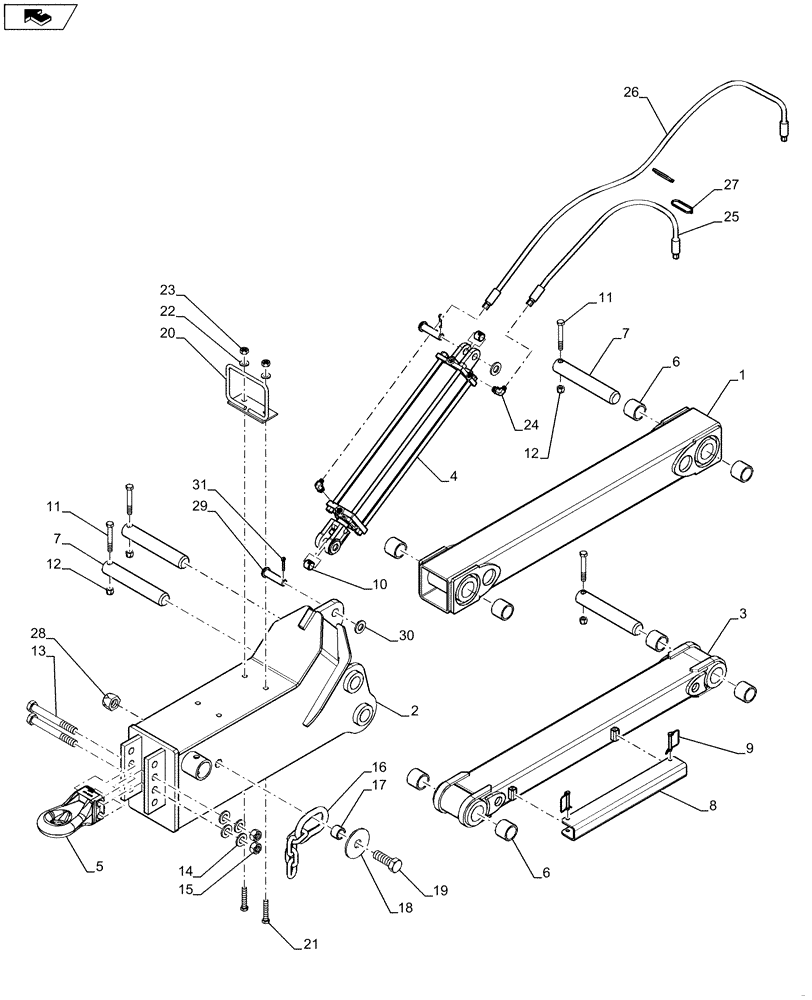

Запчасти Case IH 1260 (39.100.01) - FRAME - PARALLEL HITCH (39) - FRAMES AND BALLASTING

1

87471337

ARM

upper parallel link

1шт.

2

87496157

HITCH

parallel base

1шт.

3

87471336

ARM

parallel lower link assembly

1шт.

4

87671045

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 609.6mm Stroke

4" x 24" Nitro

1шт.

5

87506220

HITCH

hitch

1шт.

6

87632788

BUSHING

polylube 2 1/2" od x 2" id x 2" long

8шт.

7

87757679

PARALLEL PIN

hitch pivot

4шт.

8

84362605

STOP

Hitch Cylinder

1шт.

9

87574044

PIN

Square Wire Hook

2шт.

10

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

11

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

4шт.

12

231-41410

NUT,5/8"-11, GB

4шт.

13

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

14

87024780

WASHER,26.98mm ID x 50.8mm OD x 5.56mm Thk

1 1/16" x 2" x .219", HDN

4шт.

15

86511609

NUT,1"-8, G8

2шт.

16

447759A1

CHAIN

assembly, safety, 60,600 pounds

1шт.

17

84273277

SUPPORT

Safety Chain

1шт.

18

84279518

SUPPORT

Safety Chain

1шт.

19

87493272

BOLT

BOLT 1 1/4" x 3 1/2" gr5

1шт.

20

87493889

RETAINER

hydraulic hose

1шт.

21

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

22

12034871

WASHER

5/8"

2шт.

23

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

24

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

25

1251944C1

HYDRAULIC HOSE

3/8" x 41 fl

1шт.

26

1284315C1

HYDRAULIC HOSE

3/8" x 65" fl

1шт.

27

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

28

86609684

NUT,1 1/4"-7, GB

1шт.

29

87319527

HEADED PIN,1" OD x 3-3/4" L

2шт.

30

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

2шт.

31

87041

COTTER PIN,1/4" x 1 3/4"

2шт.
