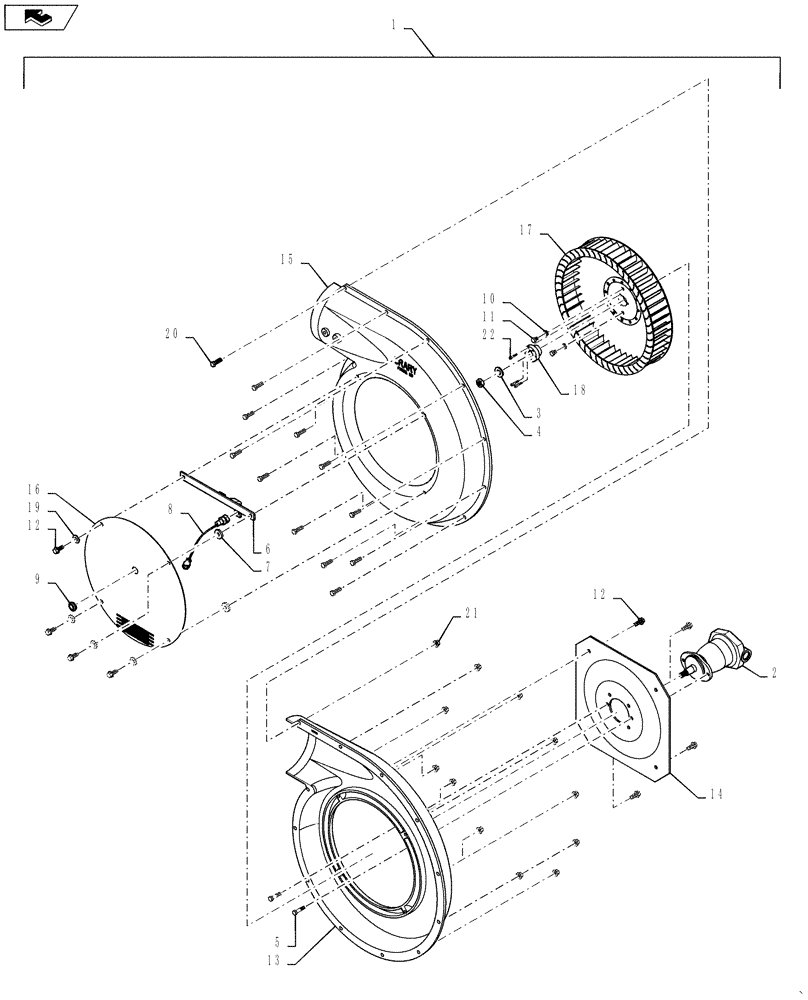

Запчасти Case IH 1260 (35.752.02) - FAN - BLOWER 8" ASSEMBLY AND MOTOR (35) - HYDRAULIC SYSTEMS

1

87495549

FAN

8" assembly

1шт.

2

84135077

MOTOR

bulk fill, piston

1шт.

3

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

4

86624024

THIN NUT,5/8"-18, Thin, G8

1шт.

5

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

6

84146302

BRACKET

fan speed sensor

1шт.

7

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

2шт.

8

324049A1

SENSOR

speed hall

1шт.

9

435810A1

GROMMET,5/8" ID x 1-1/8" OD x 3/8" Thk

1 1/8"od 5/8"id 3/8"thk

1шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

11

88814

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

12

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

8шт.

13

NSS

NOT SOLD SEPARAT

HOUSING, Fan Body, RH

1шт.

14

87498553

MOUNT

Fan Motor Plate

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING, Fan Body, LH

1шт.

16

84130047

PROTECTION PLATE

Fan Inlet

1шт.

17

84130046

IMPELLER

Fan

1шт.

18

87500050

BUSHING

Fan Impeller

1шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

20

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

21

86521609

FLANGE NUT,Flg, 3/8"-16

12шт.

22

87016453

SCREW,Hex Soc Hd, #10-24 x 1"

3шт.
