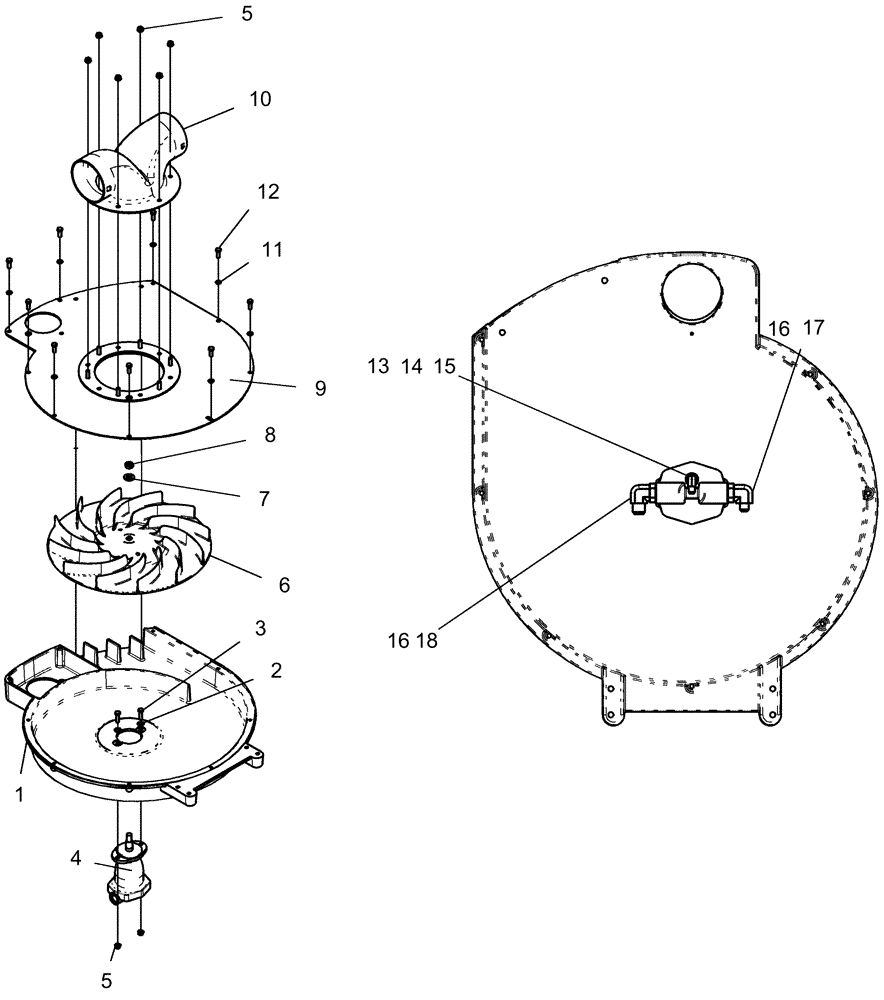

Запчасти Case IH 1260 (35.752.01) - FAN - ASSEMBLY (35) - HYDRAULIC SYSTEMS

0

86988187

FAN

assembly vacuum 6" inlet

1шт.

1

323944A2

HOUSING

impeller

1шт.

2

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

4

278188A1

MOTOR

9.8 cm3 (.6 in3) displacement, fan drive

1шт.

4

278188A1R

REMAN-HYD MOTOR

Remanufactured Hydraulic Pump

1шт.

4

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

6

241856A2

FAN

21" curved blade

1шт.

7

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

8

86624024

THIN NUT,5/8"-18, Thin, G8

1шт.

9

87606562

PLATE

Front 21" With Decal

1шт.

10

446490A1

VENT MANIFOLD

2 inlet 6"

1шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

9шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

15

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

Cap with 218-335 for shipping

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

17

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

Cap with 218-335 for shipping

1шт.

18

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

Cap with 218-335 for shipping

1шт.
