Запчасти Case IH 1260 (35.220.10[02]) - HYDRAULICS - OUTER HITCH (35) - HYDRAULIC SYSTEMS

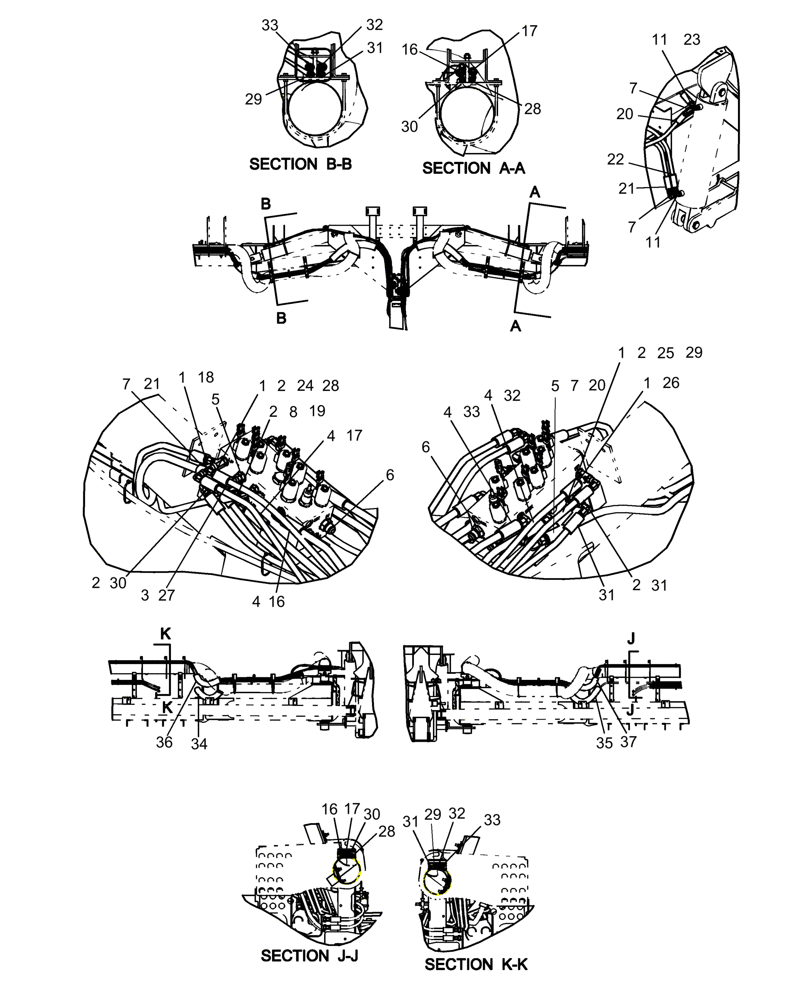

Схема запчастей Case IH 1260 - (35.220.10[02]) - HYDRAULICS - OUTER HITCH (35) - HYDRAULIC SYSTEMS
4
29
4
2
30
5
31
32
36
25
33
33
6
7
37
24
1
29
17
32
19
17
32
3
21
7
20
16
11
34
16
2
31
1
31
28
31
5
6
1
4
27
21
30
1
28
2
20
33
2
18
17
7
8
4
16
11
26
22
35
30
29
28
23
2
7

Артикул

Название

Примечание

Количество

1

87564739

TEE

9/16"-18, 37º, 3/4"-16, O-Ring Run, 9/16"-18, 37º

4шт.

2

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

10шт.

3

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

5

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

6

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

7

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

4шт.

8

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

9

1263477C3

HYD CONNECTOR

union restrictor

4шт.

10

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

6шт.

11

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

12

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

13

87482623

CLAMP

agriculture large

6шт.

14

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

15

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

16

128579A1

HOSE

1/2" X 550"

1шт.

17

295769A1

HOSE,12.7mm ID x 9270mm L

1/2" X 9015 mm fl

1шт.

18

129782C2

HYDRAULIC HOSE

3/8" x 165" fl

1шт.

19

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

3/8" x 175" fl

1шт.

20

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

1шт.

21

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

1шт.

22

90878C1

HYDRAULIC HOSE

1/2" x 39" fl

1шт.

23

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

24

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

25

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

1шт.

26

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

27

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

28

1284269C1

HYDRAULIC HOSE

3/8" x 360" fl

1шт.

29

1284269C1

HYDRAULIC HOSE

3/8" x 360" fl

1шт.

30

87435638

HYDRAULIC HOSE

3/8" x 335" fl

1шт.

31

87435638

HYDRAULIC HOSE

3/8" x 335" fl

1шт.

32

295769A1

HOSE,12.7mm ID x 9270mm L

1/2" X 9015 mm fl

1шт.

33

128579A1

HOSE

1/2" X 550"

1шт.

34

87500092

HOSE PROTECTION

Sleeve Wrap 35'

1шт.

35

87500092

HOSE PROTECTION

Sleeve Wrap 35'

1шт.

36

87500092

HOSE PROTECTION

Sleeve Wrap 35'

1шт.

37

87500092

HOSE PROTECTION

Sleeve Wrap 35'

1шт.

38

87500093

HOSE

sleeve wrap 762 mm

1шт.

39

87500093

HOSE

sleeve wrap 762 mm

1шт.

40

112620A1

CABLE TIE

CABLE STRAP 34"

8шт.

41

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

7шт.

42

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

43

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

4шт.

44

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

17шт.

Выбрано товаров: 44
