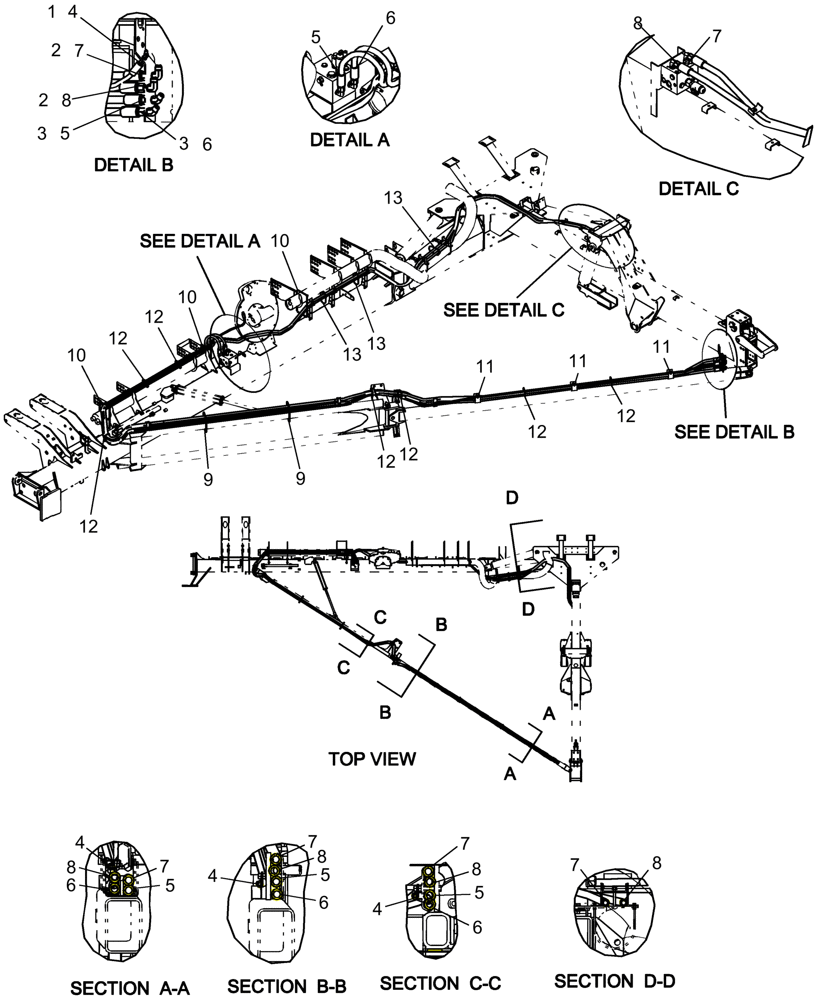

Запчасти Case IH 1260 (35.220.09) - HYDRAULICS - DRAFT TUBE (35) - HYDRAULIC SYSTEMS

1

86513096

ELBOW UNION

Union Elbow

1шт.

2

248985

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

3

86513099

FITTING

45º Bulkhead, 37º Flare, -12

2шт.

4

84159796

HYDRAULIC HOSE

10 mm x 13260 mm fl

1шт.

5

84227064

HYDRAULIC HOSE,19.05mm ID x 12300mm L, SAE 100R17

19 mm x 12300 mm fl

1шт.

6

84227064

HYDRAULIC HOSE,19.05mm ID x 12300mm L, SAE 100R17

19 mm x 12300 mm fl

1шт.

7

84138956

HYDRAULIC HOSE

19 mm x 20150 mm fl

1шт.

8

84138956

HYDRAULIC HOSE

19 mm x 20150 mm fl

1шт.

9

112620A1

CABLE TIE

CABLE STRAP 34"

2шт.

10

112620A1

CABLE TIE

CABLE STRAP 34"

3шт.

11

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

3шт.

12

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

7шт.

13

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

10шт.
