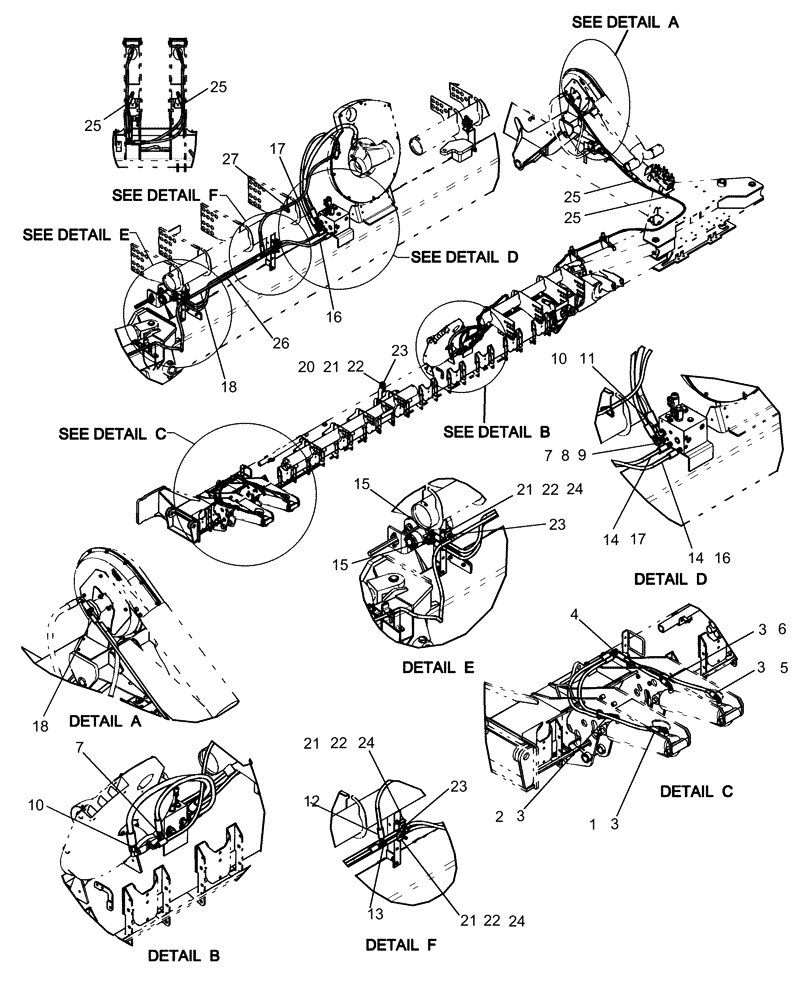

Запчасти Case IH 1260 (35.220.08[02]) - HYDRAULICS - OUTER WING LH (35) - HYDRAULIC SYSTEMS

1

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

2

144123

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

6

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

7

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

8

84198531

CARRIAGE BOLT

3/8"-16 x 3", G5

5шт.

9

87482623

CLAMP

agriculture large

5шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

5шт.

11

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

12

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

13

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

14

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

15

1344615C1

HYDRAULIC HOSE

1/2" x 21" fl

1шт.

16

1960386C1

HYDRAULIC HOSE

1/2" x 35" fl

1шт.

17

1284290C1

HYDRAULIC HOSE

3/8" x 320" fl

1шт.

18

84223562

HYDRAULIC HOSE

19 mm x 750 mm fl

1шт.

19

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

20

31-1228

HYDRAULIC HOSE

1/2" x 1145 mm fl

1шт.

21

31-1228

HYDRAULIC HOSE

1/2" x 1145 mm fl

1шт.

22

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

23

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

24

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

25

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

27шт.
