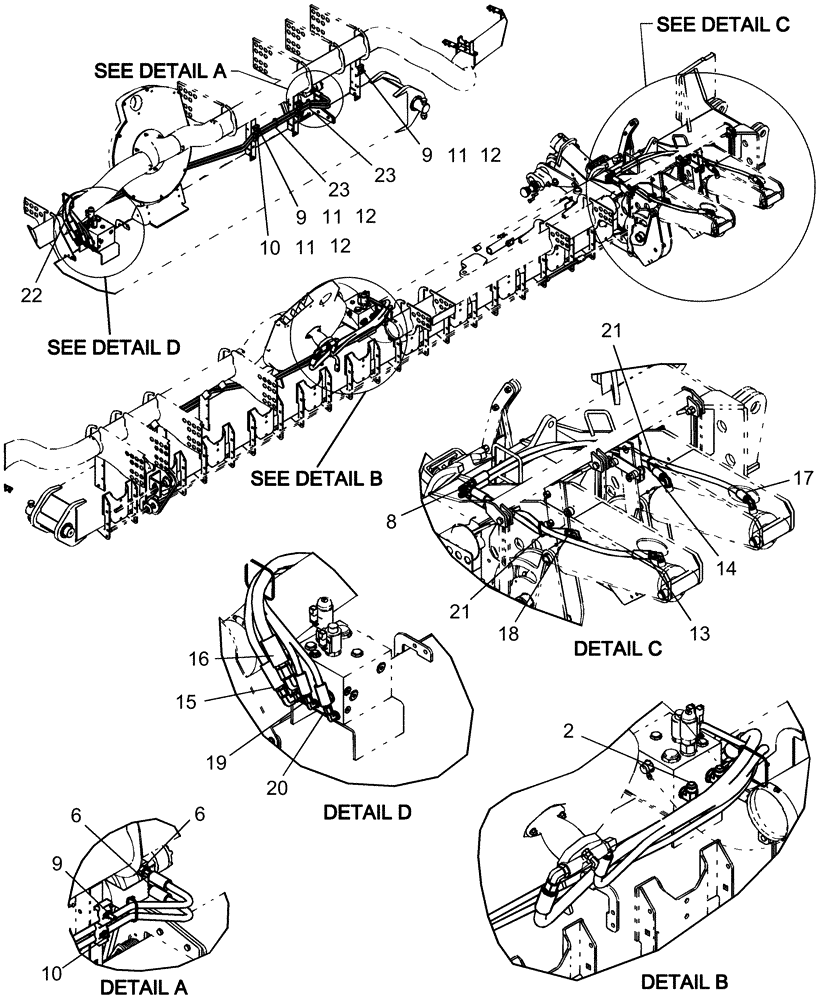

Запчасти Case IH 1260 (35.220.08[01]) - HYDRAULICS - OUTER WING RH (35) - HYDRAULIC SYSTEMS

1

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

2

144123

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

5

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

6

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

7

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

8

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

9

84198531

CARRIAGE BOLT

3/8"-16 x 3", G5

3шт.

10

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

2шт.

11

87482623

CLAMP

agriculture large

5шт.

12

247780

SERRATED NUT,Flg, USR, 3/8"-16

5шт.

13

31-1228

HYDRAULIC HOSE

1/2" x 1145 mm fl

1шт.

14

31-1228

HYDRAULIC HOSE

1/2" x 1145 mm fl

1шт.

15

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

1/2" x 50" fl

1шт.

16

87463224

HYDRAULIC HOSE

3/4" x 55" (1400 mm) fl

1шт.

17

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

18

1344615C1

HYDRAULIC HOSE

1/2" x 21" fl

1шт.

19

139654C2

HYDRAULIC HOSE

3/8" x 125" Coiled

1шт.

20

139654C2

HYDRAULIC HOSE

3/8" x 125" Coiled

1шт.

21

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

22

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

23

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

27шт.
