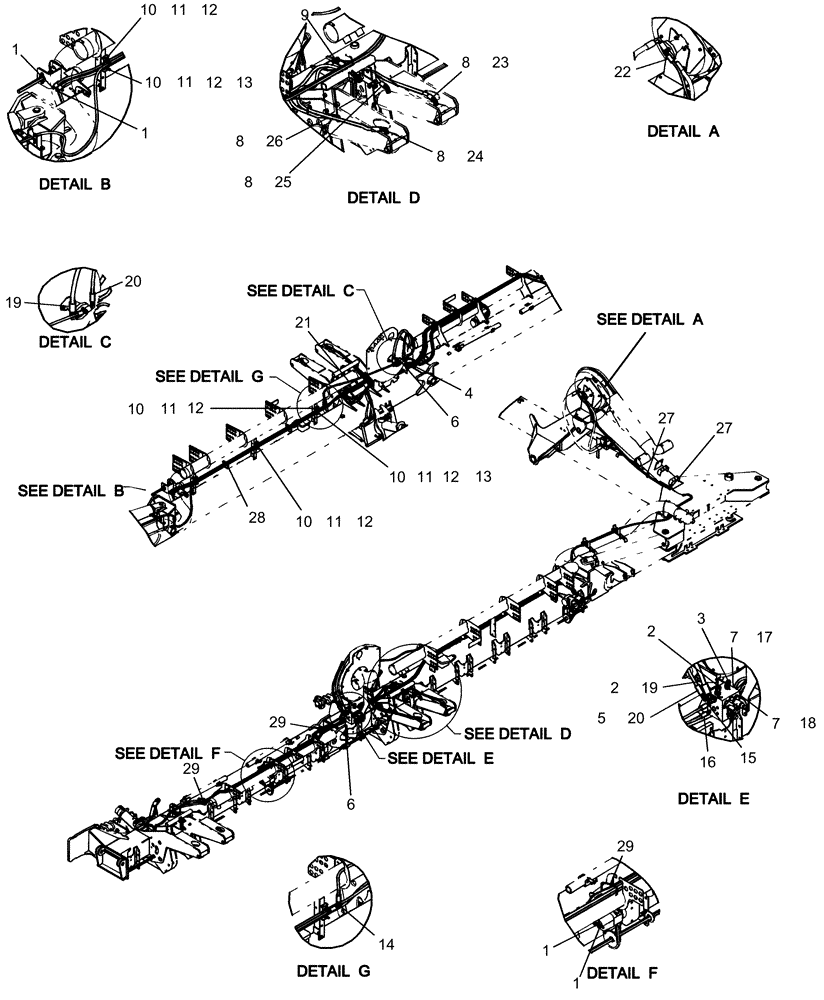

Запчасти Case IH 1260 (35.220.07) - HYDRAULICS - ACCUROW MID WING (35) - HYDRAULIC SYSTEMS

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

2

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

3

144123

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

1шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

5

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

7

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

9

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

84198531

CARRIAGE BOLT

3/8"-16 x 3", G5

6шт.

11

87482623

CLAMP

agriculture large

6шт.

12

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

13

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

14

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

15

810570C2

HYDRAULIC HOSE

3/8" x 90" fl

1шт.

16

810570C2

HYDRAULIC HOSE

3/8" x 90" fl

1шт.

17

435694A1

HYDRAULIC HOSE

3/8" x 190" fl

1шт.

18

435694A1

HYDRAULIC HOSE

3/8" x 190" fl

1шт.

19

345691A1

HYDRAULIC HOSE

3/4" x 36" (915 mm) fl

1шт.

20

1336925C1

HYDRAULIC HOSE

1/2" x 33" fl

1шт.

21

195504C2

HYDRAULIC HOSE

3/8" x 2030 mm fl

1шт.

22

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

23

31-1228

HYDRAULIC HOSE

1/2" x 1145 mm fl

1шт.

24

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

25

84223646

HYDRAULIC HOSE

12.5 mm x 6500 mm fl

1шт.

26

84223646

HYDRAULIC HOSE

12.5 mm x 6500 mm fl

1шт.

27

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

4шт.

28

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

29

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

19шт.
