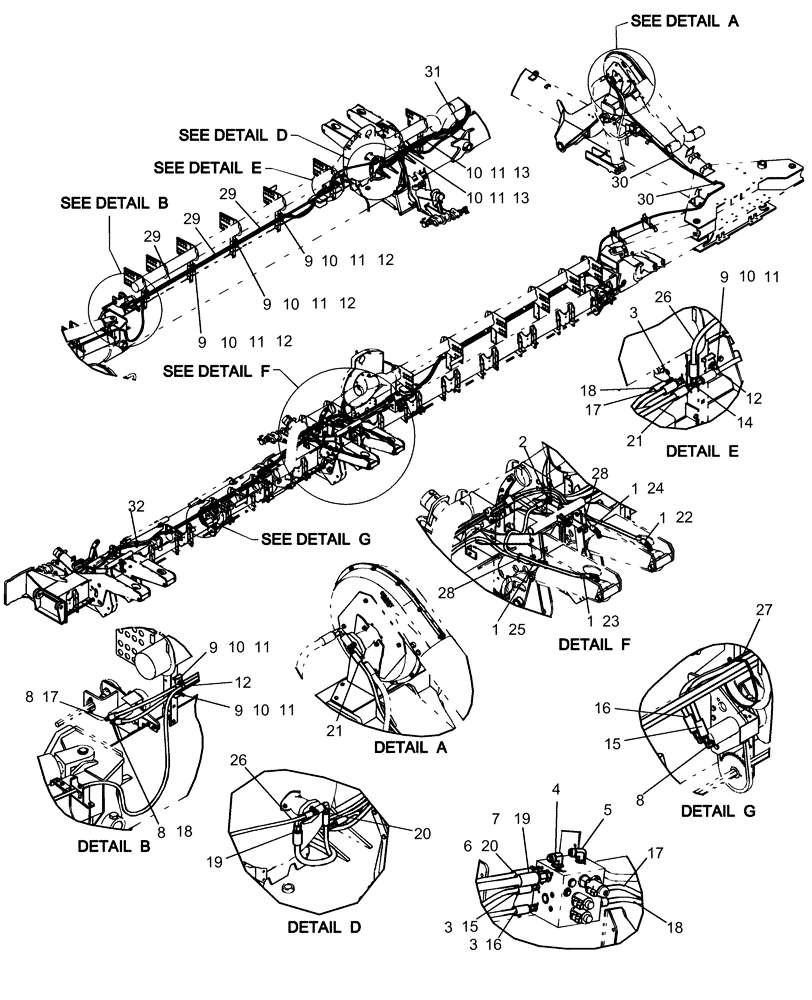

Запчасти Case IH 1260 (35.220.06) - HYDRAULICS - MID WING (36R30) (35) - HYDRAULIC SYSTEMS

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

2

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

4шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

5

144123

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

1шт.

6

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

7

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

8

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

9

84198531

CARRIAGE BOLT

3/8"-16 x 3", G5

9шт.

10

87482623

CLAMP

agriculture large

13шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

11шт.

12

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

13

84198532

CARRIAGE BOLT

3/8"-16 x 3 1/2", G5

2шт.

14

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

15

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

3/8" x 175" fl

1шт.

16

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

3/8" x 175" fl

1шт.

17

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

3/8" x 175" fl

1шт.

18

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

3/8" x 175" fl

1шт.

19

87463224

HYDRAULIC HOSE

3/4" x 55" (1400 mm) fl

1шт.

20

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

1/2" x 50" fl

1шт.

21

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

22

31-1228

HYDRAULIC HOSE

1/2" x 1145 mm fl

1шт.

23

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

24

87655965

HYDRAULIC HOSE

1/2" x 260"

1шт.

25

87655965

HYDRAULIC HOSE

1/2" x 260"

1шт.

26

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

27

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

2шт.

28

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

3шт.

29

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

17шт.

30

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

31

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

1шт.

32

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.
