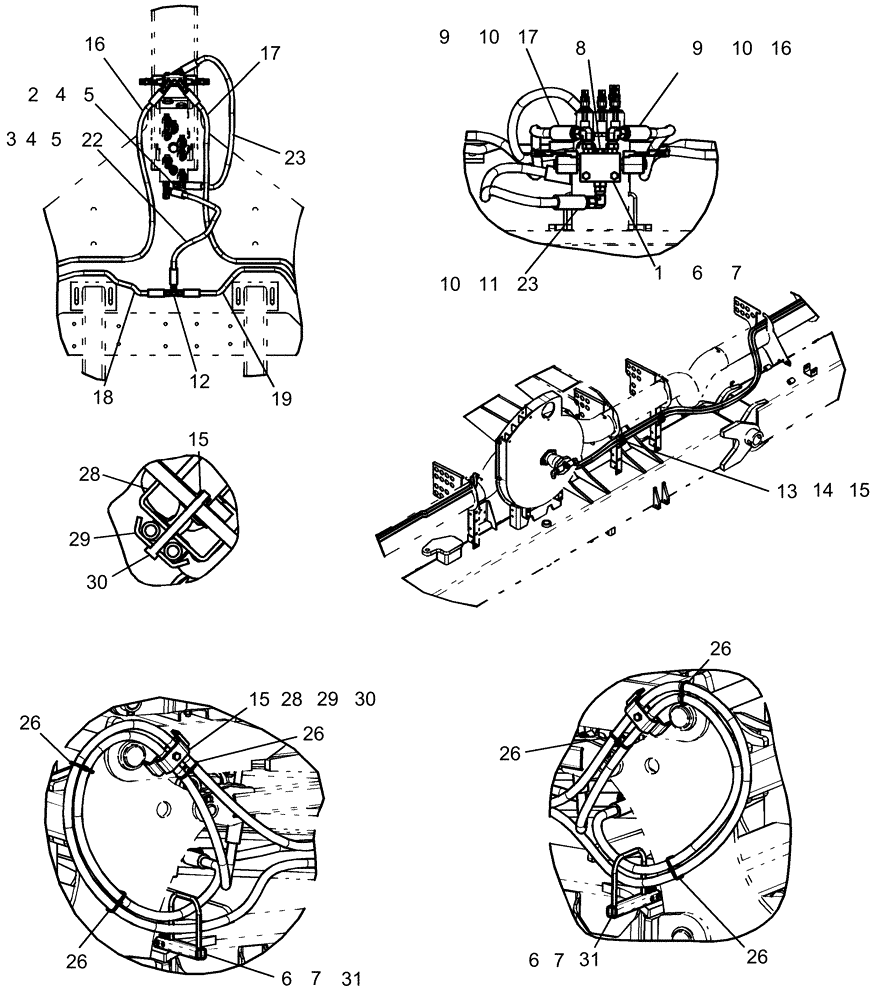

Запчасти Case IH 1260 (35.220.05[01]) - HYDRAULICS - MARKER (35) - HYDRAULIC SYSTEMS

1

87463248

VALVE

assembly, marker

1шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

3

84164850

RESTRICTOR

.75 ORB x .75-37º, 1.98 mm orifice

1шт.

4

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

5

262159

CAP,3/4" - 16 Fem JIC

2шт.

6

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

6шт.

7

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

6шт.

8

76349

PLUG,9/16" - 18 ORB

1шт.

9

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

2шт.

10

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

3шт.

11

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

12

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

13

84198530

CARRIAGE BOLT

3/8"-16 x 2 1/2", G5

4шт.

14

87482623

CLAMP

agriculture large

4шт.

15

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

16

84138958

HYDRAULIC HOSE

12.5 mm x 15100 mm fl

1шт.

36R30

1шт.

16

84195150

HYDRAULIC HOSE

12.5 mm x 13600 mm fl

1шт.

32R30

1шт.

16

117007A1

HYDRAULIC HOSE

1/2" x 460" fl

1шт.

36R22

1шт.

16

84195928

HYDRAULIC HOSE

12.5 mm x 11100 mm fl

1шт.

36R20

1шт.

17

84138958

HYDRAULIC HOSE

12.5 mm x 15100 mm fl

1шт.

18

84138971

HYDRAULIC HOSE

12.5 mm x 14100 mm fl

1шт.

36R30

1шт.

18

84195155

HYDRAULIC HOSE

12.5 mm x 12750 mm fl

1шт.

32R30

1шт.

18

84161654

HYDRAULIC HOSE

12 mm x 10950 mm

1шт.

36R22

1шт.

18

87537225

HOSE

1/2" x 390" fl

1шт.

36R20

1шт.

19

84138971

HYDRAULIC HOSE

12.5 mm x 14100 mm fl

1шт.

20

196584C2

HYDRAULIC HOSE

1/2" x 95" fl

1шт.

21

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

22

1304251C2

HYDRAULIC HOSE

1/2" x 41" fl

1шт.

23

90878C1

HYDRAULIC HOSE

1/2" x 39" fl

1шт.

24

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

25

196584C2

HYDRAULIC HOSE

1/2" x 95" fl

1шт.

26

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

6шт.

27

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

14шт.

28

84138695

BRACKET, SUPPORTING

Hose

2шт.

29

427781A1

HOSE CLAMP

2 hose

2шт.

30

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

31

87671075

SUPPORT

Hydraulic Hose Assembly

2шт.

32

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

33

84272405

FITTING

One-Way Orifice

2шт.

34

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

35

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

2шт.
