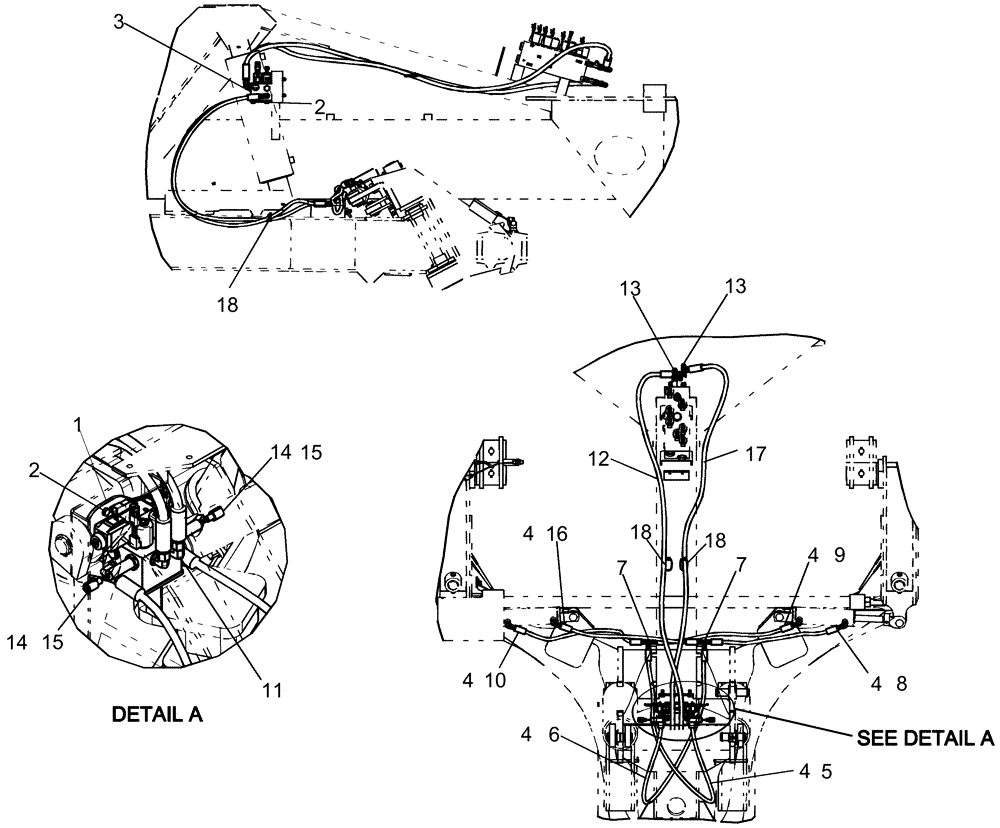

Запчасти Case IH 1260 (35.220.04) - HYDRAULICS - STEERABLE (35) - HYDRAULIC SYSTEMS

1

84219288

SUPPORT

Valve

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

3

84203793

HYDRAULIC VALVE

Auto Steering

1шт.

4

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

6шт.

5

1284315C1

HYDRAULIC HOSE

3/8" x 65" fl

1шт.

6

1284315C1

HYDRAULIC HOSE

3/8" x 65" fl

1шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

8

87706C1

HYDRAULIC HOSE

3/8" x 29"

1шт.

9

87706C1

HYDRAULIC HOSE

3/8" x 29"

1шт.

10

87706C1

HYDRAULIC HOSE

3/8" x 29"

1шт.

11

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

12

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

13

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

14

1547189C1

SWITCH

pressure, 1500 psi

2шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

16

87706C1

HYDRAULIC HOSE

3/8" x 29"

1шт.

17

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

18

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

4шт.
