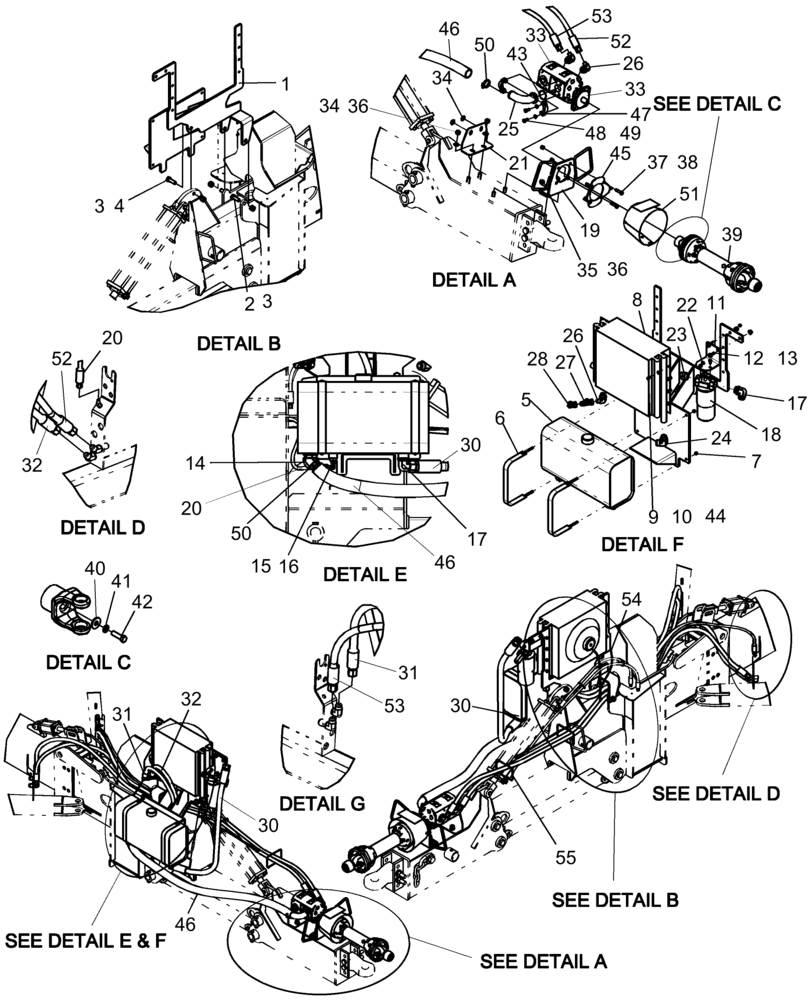

Запчасти Case IH 1260 (35.220.01) - HYDRAULICS - PTO PUMP AND HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84197718

MOUNT

Cooler and Tank

1шт.

2

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

3

280375

NUT,3/4"-10, GC

3шт.

4

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

5

87399501

TANK

11 gallon

1шт.

6

87399575

STRAP

11 gallon tank

2шт.

7

9637692

NUT,3/8"-16, Gr B

4шт.

8

87432160

OIL COOLER

PTO

1шт.

9

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

8шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

11

84284566

BRACKET

Filter Assembly

1шт.

12

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

14

217-323

FITTING,45 Degree Elbow, 2" Hose Barb x 1-7/8" - 12 Male ORB

1шт.

15

86624009

HYD CONNECTOR,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring

1шт.

16

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

17

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

2шт.

18

87432158

FILTER ASSY

filter and head

1шт.

18

87432159

ELEMENT

filter

1шт.

19

84197719

BRACKET

PTO pump mount

1шт.

20

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

21

84197721

BRACKET

PTO pump

1шт.

22

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

3шт.

23

570180

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

1шт.

24

87010672

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

1шт.

25

84195601

FITTING

90º 2" fl x 2" b

1шт.

26

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

3шт.

27

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

28

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

29

84205308

HYDRAULIC HOSE

31.5 mm x 800 mm fl

1шт.

30

84205371

HYDRAULIC HOSE

31.5 mm x 1250 mm fl

1шт.

31

87580893

HYDRAULIC HOSE,19.05mm ID x 2720mm L, SAE 100R17

19 mm x 2720 mm fl

1шт.

32

87580893

HYDRAULIC HOSE,19.05mm ID x 2720mm L, SAE 100R17

19 mm x 2720 mm fl

1шт.

33

84143387

HYDRAULIC PUMP,99.12 CC

two section

1шт.

34

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

35

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

36

231-42410

LOCK NUT,5/8"-11, GB

4шт.

37

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

38

86992215

LOCK NUT,1/2"-13, GC

4шт.

39

84199137

DRIVE SHAFT

1.75" yoke unequal angle See 35.220.01[01] for components

1шт.

40

84278119

WASHER,0.47" ID x 1.25" OD x 0.13" Thk

1шт.

41

81547

LOCK WASHER,7/16"

1шт.

42

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

1шт.

43

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

44

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

45

84202833

SUPPORT

shield mount

1шт.

46

84205274

HYDRAULIC HOSE

50.8 mm x 1900 mm fl

1шт.

47

A14141

FLANGE

split, 2"

2шт.

48

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

49

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

50

82012728

COLLAR,50mm - 65mm, Worm Gear

2шт.

51

84224796

CONE

Pto Drive Shaft With Decal

1шт.

52

84223583

HYDRAULIC HOSE

19 mm x 3800 mm fl

1шт.

53

84223583

HYDRAULIC HOSE

19 mm x 3800 mm fl

1шт.

54

355955A1

HARNESS

cyclo cooling

1шт.

55

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

2шт.

56

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

1шт.
