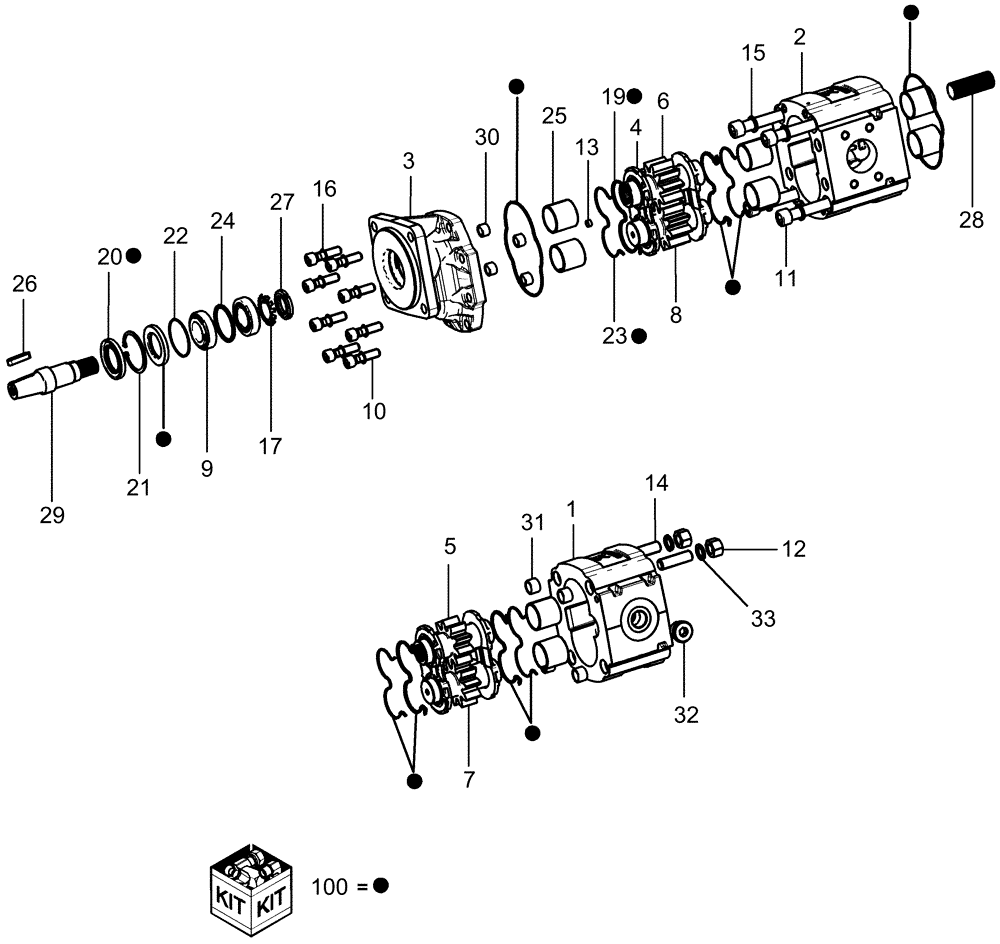

Запчасти Case IH 1260 (35.138.08) - HYDRAULICS - VALVE TWO SECTION PUMP (35) - HYDRAULIC SYSTEMS

0

84143387

HYDRAULIC PUMP,99.12 CC

two section

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

4шт.

3

NSS

NOT SOLD SEPARAT

Front Cover

1шт.

4

NSS

NOT SOLD SEPARAT

Thrust Plate

1шт.

5

NSS

NOT SOLD SEPARAT

Drive Gear

2шт.

6

NSS

NOT SOLD SEPARAT

Drive Gear

8шт.

7

NSS

NOT SOLD SEPARAT

Driven Gear

4шт.

8

NSS

NOT SOLD SEPARAT

Driven Gear

2шт.

9

NSS

NOT SOLD SEPARAT

Bearing

1шт.

10

NSS

NOT SOLD SEPARAT

Screw

2шт.

11

NSS

NOT SOLD SEPARAT

Screw

6шт.

12

12164121

NUT,M16 x 1.5, Cl 10

8шт.

13

NSS

NOT SOLD SEPARAT

Grub Screw 1/8"

1шт.

14

NSS

NOT SOLD SEPARAT

Stud Bolt M

2шт.

15

NSS

NOT SOLD SEPARAT

Washer

4шт.

16

NSS

NOT SOLD SEPARAT

Washer Knurled 12

2шт.

17

NSS

NOT SOLD SEPARAT

Lock Washer

1шт.

18

NSS

NOT SOLD SEPARAT

O Ring Seal

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

4шт.

20

NSS

NOT SOLD SEPARAT

Shaft Seal

1шт.

21

NSS

NOT SOLD SEPARAT

Ring

8шт.

22

NSS

NOT SOLD SEPARAT

Lock Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Back-up Ring

1шт.

24

NSS

NOT SOLD SEPARAT

Spacer Ring

1шт.

25

NSS

NOT SOLD SEPARAT

Sleeve Bearing

1шт.

26

Q1443

KEY,5/16" Sq x 1 1/2", Par

4шт.

27

NSS

NOT SOLD SEPARAT

Threaded Locking Ring

1шт.

28

NSS

NOT SOLD SEPARAT

Hub KP40-44

1шт.

29

NSS

NOT SOLD SEPARAT

Support Shaft

1шт.

30

NSS

NOT SOLD SEPARAT

Steel Bushes

1шт.

31

NSS

NOT SOLD SEPARAT

Steel Bushes

1шт.

32

NSS

NOT SOLD SEPARAT

Steel Plug TCEI

1шт.

33

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

8шт.

100

84253639

SEAL KIT

1шт.
