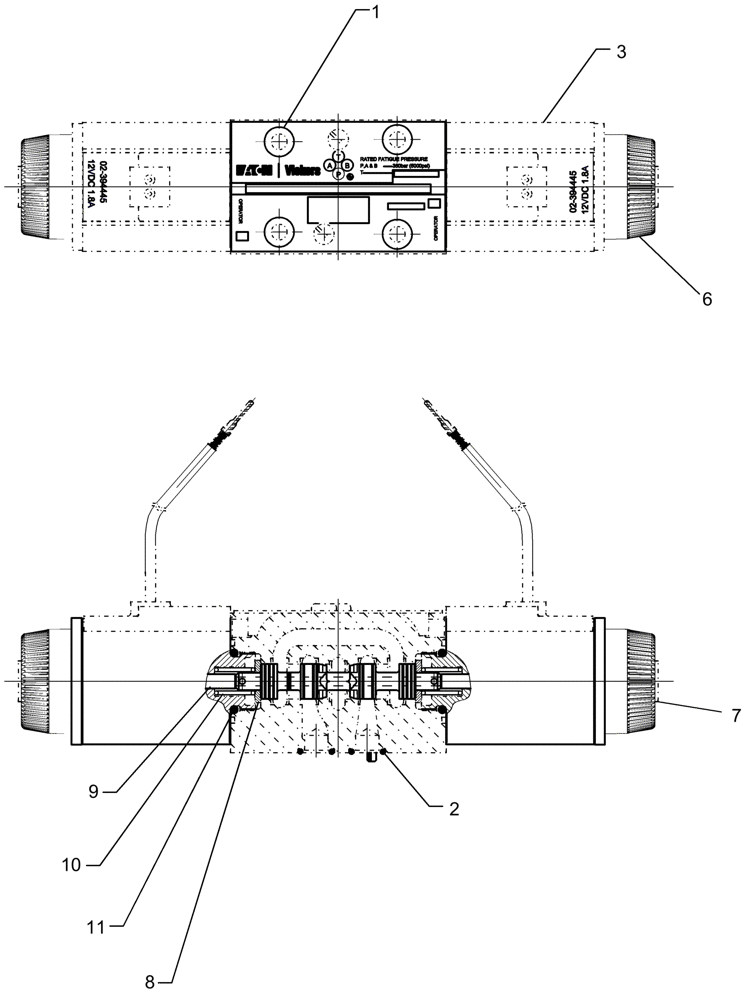

Запчасти Case IH 1260 (35.138.04) - HYDRAULICS - VALVE, STEERING PROPORTIONAL (35) - HYDRAULIC SYSTEMS

1

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

2

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

3

87662365

COIL

12vdc, Proportional

2шт.

4

87694154

CONTACT HOUSING,Male, 4 Pole

Deutsch DT4

1шт.

Not Shown

1шт.

5

9861376

CONTACT HOUSING

Wedge ES-A7380

1шт.

Not Shown

1шт.

6

188106A1

NUT

retaining, Serial Range: coil-stem

2шт.

7

87439633

TUBE,17.5mm OD x 72.81mm OAL

2шт.

8

196739A1

WASHER

Centering

2шт.

9

196737A1

SPLIT PIN/SAFETY PIN

Solenoid Armature

2шт.

10

87439631

SPRING

2шт.

11

14457281

O-RING,0.612" ID x 0.103" Width

2шт.
