Запчасти Case IH 1260 (80.150.25) - BULK FILL - DISTRIBUTOR INDUCTOR ASSEMBLY (80) - CROP STORAGE/UNLOADING

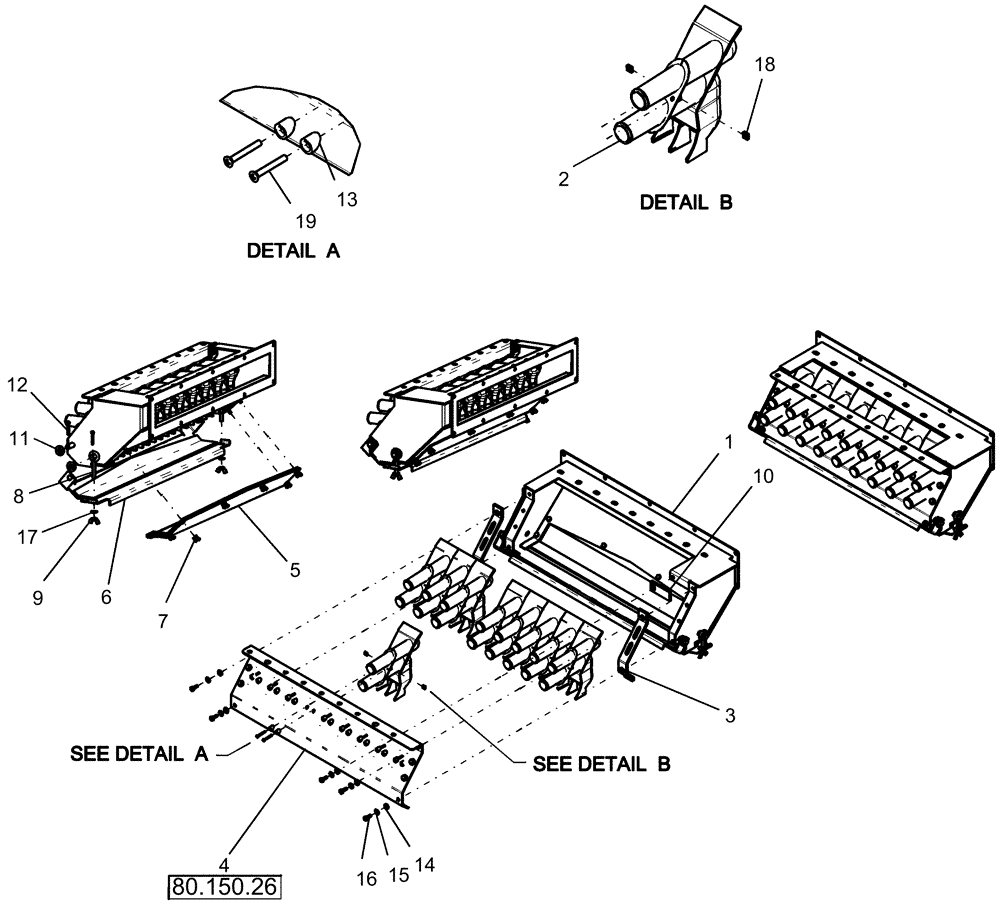

Схема запчастей Case IH 1260 - (80.150.25) - BULK FILL - DISTRIBUTOR INDUCTOR ASSEMBLY (80) - CROP STORAGE/UNLOADING
16
1
13
6
2
12
18
11
17
4
15
8
80.150.26
7
5
9
19
10
3
14

Артикул

Название

Примечание

Количество

0

87676529

DISTRIBUTOR

inductor assembly, 18 port

1шт.

1

87676534

BOX

inductor, 18 port

1шт.

2

87472417

DISTRIBUTOR

segmented

9шт.

3

407094A2

GASKET

neoprene front black 1 1/4" w x 9 5/8" l x 1/4"

2шт.

4

NSS

NOT SOLD SEPARAT

1шт.

See Figure 80.150.26

1шт.

5

87472409

HATCH

Inductor Rear, With Gasket

1шт.

6

87676538

HATCH

Inductor Front, With Gasket

1шт.

7

86627130

WING NUT,1/4"-20

6шт.

8

87749881

EYEBOLT

2шт.

9

80801

WING NUT

5/16"-18

2шт.

10

87502068

GASKET

neoprene black 1 7/32" wide x 3" long x 1/4" thk

1шт.

11

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

12

432-1216

COTTER PIN,3/16" x 1"

4шт.

13

87498549

WASHER

50º wedge 5 mm id x 12 mm od

18шт.

14

21676

RUBBER WASHER

1/4"id 5/8" 7/16"tk

9шт.

15

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

9шт.

16

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

9шт.

17

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.

18

84151584

SQUARE NUT

#8-32 square

18шт.

Выбрано товаров: 20
