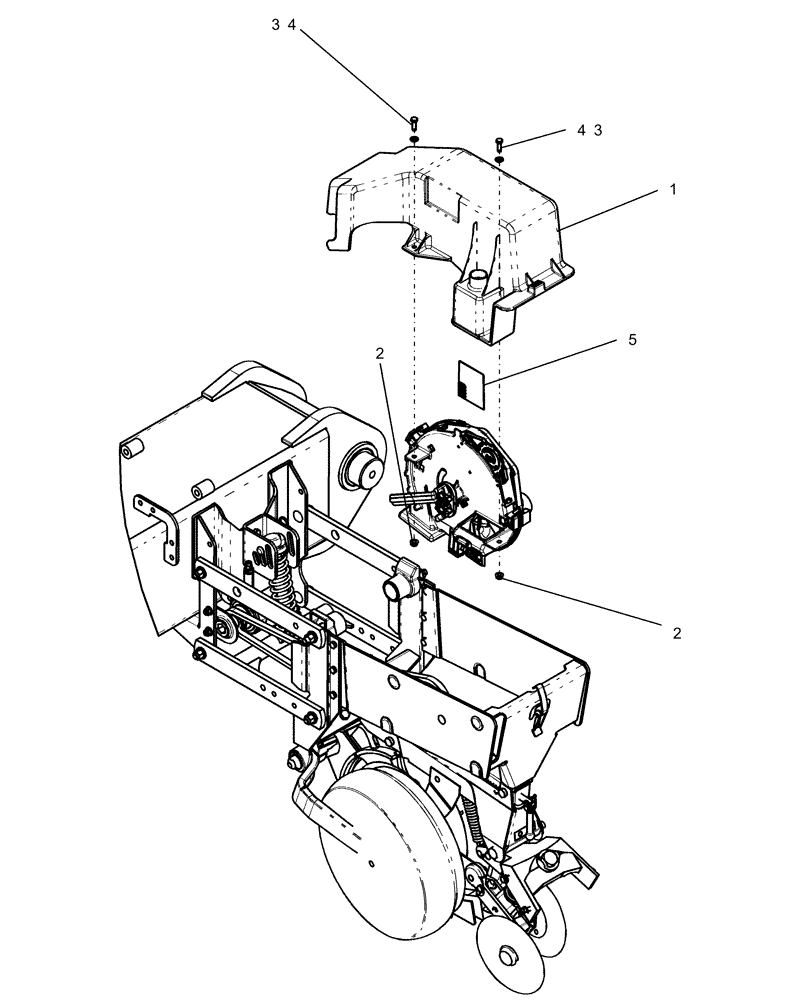

Запчасти Case IH 1260 (80.150.24) - BULK FILL - METER ASSEMBLY WITH MINI HOPPER (80) - CROP STORAGE/UNLOADING

1

411435A1

MANIFOLD

hopper bulk fill mini

1шт.

2

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

3

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

5

443746A1

SCREEN

mini-hopper

1шт.

6

449129A1

COUPLING

seed hose

1шт.

7

84276891

HOSE,31.75 mm ID x 160.00 mm

Mini Hopper Inlet

1шт.

8

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

3шт.
