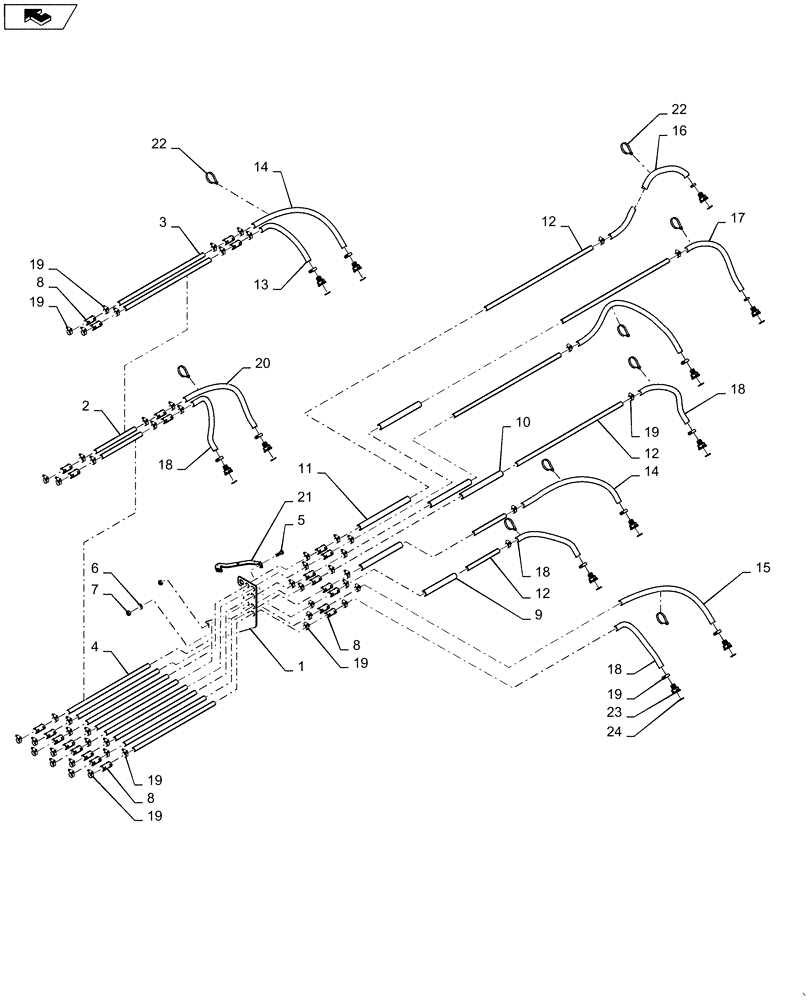

Запчасти Case IH 1260 (80.150.14[03]) - BULK FILL - HOSES RT WING 60, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

1

84135053

SUPPORT

Seed Tube 9-Hole

1шт.

2

87472366

PIPE

Bulk Fill Seed, 1" x 430 mm

2шт.

3

84203462

PIPE

Bulk Fill Seed, 1" x 1200 mm

2шт.

4

84380176

PIPE

Bulk Fill Seed, 1" x 2250 mm

8шт.

5

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

4шт.

6

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

7

9628503

NUT,3/8"-16, G5

4шт.

8

87482203

ADAPTER

Seed Hose 1.25" OD

24шт.

9

87472359

PIPE

Bulk Fill Seed, 1" x 340 mm

2шт.

10

84206451

PIPE

Bulk Fill Seed, 1" x 1560 mm

1шт.

11

87476290

PIPE

Bulk Fill Seed, 1" x 2010 mm

3шт.

12

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 580 mm

6шт.

13

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 780 mm

1шт.

14

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1020 mm

2шт.

15

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1090 mm

1шт.

16

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1800 mm

1шт.

17

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1320 mm

1шт.

18

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 710 mm

5шт.

19

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

72шт.

20

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 915 mm

1шт.

21

84208916

BRACKET

Right Hand Support

1шт.

22

87502038

CABLE TIE

CABLE STRAP Small

10шт.

23

84329267

COUPLING

1.25" Seed Hose

12шт.

24

84372879

O-RING

Seed Hose Coupling

12шт.
