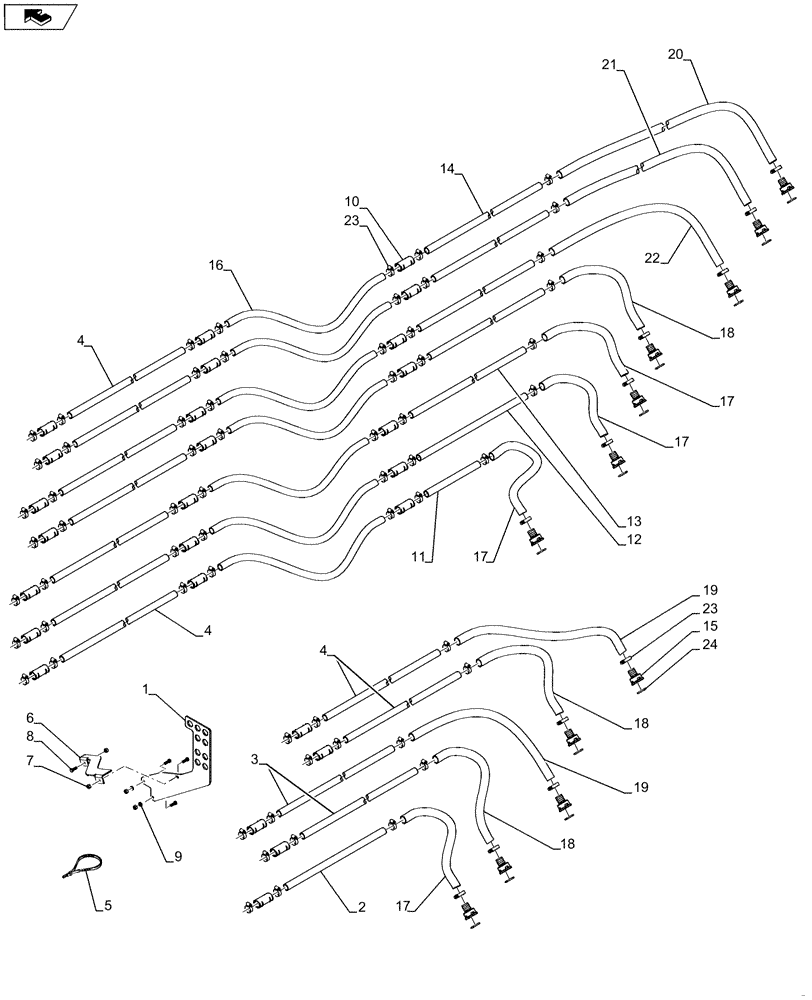

Запчасти Case IH 1260 (80.150.14[02]) - BULK FILL - HOSES RT WING 66, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

1

84135053

SUPPORT

Seed Tube 9 Hole

1шт.

2

84263910

PIPE

Bulk Fill Seed 1" x 643 mm

1шт.

3

84203462

PIPE

Bulk Fill Seed 1" x 1200 mm

2шт.

4

84380274

PIPE

Bulk Fill Seed 1" x 2210 mm

9шт.

5

87502038

CABLE TIE

CABLE STRAP (Not Shown)

10шт.

6

84146273

BRACKET, SUPPORTING

Right Hand

1шт.

7

9628503

NUT,3/8"-16, G5

4шт.

8

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

9

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

10

87482203

ADAPTER

Seed Hose 1 1/4"

26шт.

11

87472359

PIPE

Bulk Fill Seed 1" x 340 mm

1шт.

12

87472361

PIPE

Bulk Fill Seed 1" x 700 mm

1шт.

13

87472360

PIPE

Bulk Fill Seed 1" x 1190 mm

1шт.

14

87472363

PIPE

Bulk Fill Seed 1" x 1760 mm

4шт.

15

84329267

COUPLING

1.25" Seed Hose

12шт.

16

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut to 1150 mm

7шт.

17

87483977

HOSE

1.25" 100', Bulk, PVC Black Spiral, Cut to 710 mm

4шт.

18

87483977

HOSE

1.25" 100', Bulk, PVC Black Spiral, Cut to 780 mm

3шт.

19

87483977

HOSE

1.25" 100', Bulk, PVC Black Spiral, Cut to 1020 mm

2шт.

20

87483977

HOSE

1.25" 100', Bulk, PVC Black Spiral, Cut to 2500 mm

1шт.

21

87483977

HOSE

1.25" 100', Bulk, PVC Black Spiral, Cut to 2070 mm

1шт.

22

87483977

HOSE

1.25" 100', Bulk, PVC Black Spiral, Cut to 1090 mm

1шт.

23

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

76шт.

24

84372879

O-RING

Seed Hose Coupling

12шт.
