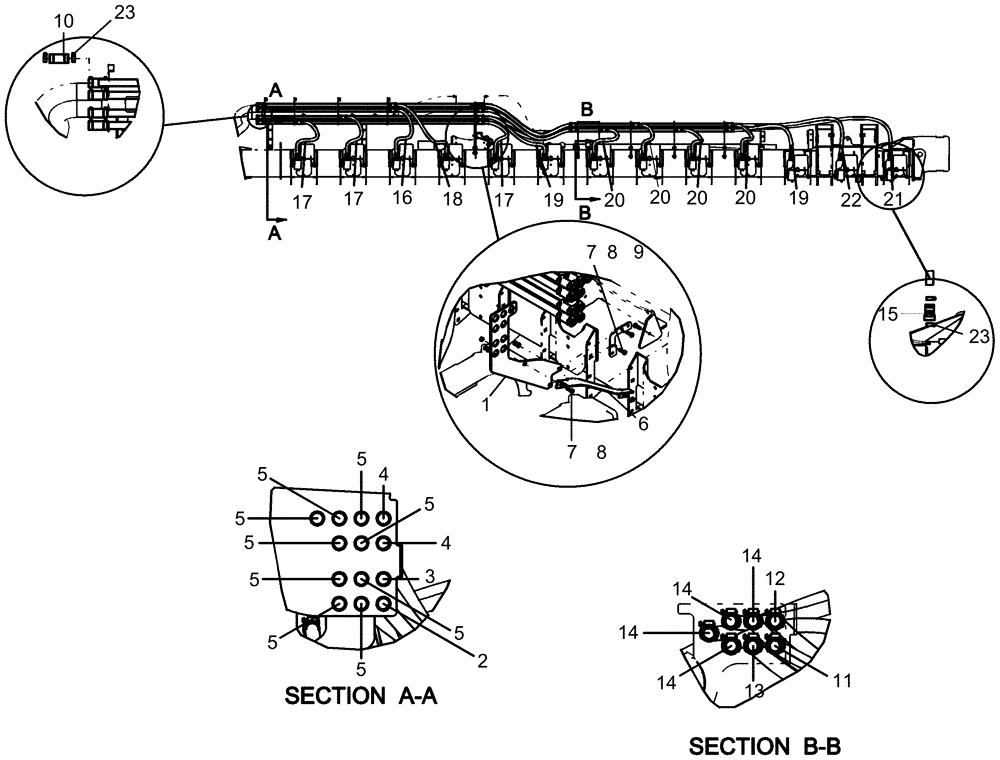

Запчасти Case IH 1260 (80.150.14[01]) - BULK FILL - HOSES RT WING 66, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING

1

84135053

SUPPORT

seed tube 9H

1шт.

2

87472366

PIPE

bulk fill seed 1" x 430 mm

1шт.

3

87472365

PIPE

bulkf fill seed 1" x 930 mm

1шт.

4

87472364

PIPE

bulk fill seed 1" x 1490 mm

2шт.

5

87472362

PIPE

bulk fill seed 1" x 2480 mm

9шт.

6

84146273

BRACKET, SUPPORTING

RH

1шт.

7

9628503

NUT,3/8"-16, G5

4шт.

8

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

9

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

10

87482203

ADAPTER

seed hose 1 1/4"

40шт.

11

87472359

PIPE

bulk fill seed 1" x 340 mm

1шт.

12

87472361

PIPE

bulk fill seed 1" x 700 mm

1шт.

13

87472360

PIPE

bulk fill seed 1" x 1190 mm

1шт.

14

87472363

PIPE

bulk fill seed 1" x 1760 mm

4шт.

15

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

13шт.

16

87483976

HOSE

1" x 100', bulk, black

8шт.

Cut to 1150 mm

1шт.

17

87483976

HOSE

1" x 100', bulk, black

3шт.

Cut to 1020 mm

1шт.

18

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 1530 mm

1шт.

19

87483976

HOSE

1" x 100', bulk, black

2шт.

Cut to 1400 mm

1шт.

20

87483976

HOSE

1" x 100', bulk, black

4шт.

Cut to 890 mm

1шт.

21

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3050 mm

1шт.

22

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 2670 mm

1шт.

23

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

106шт.
