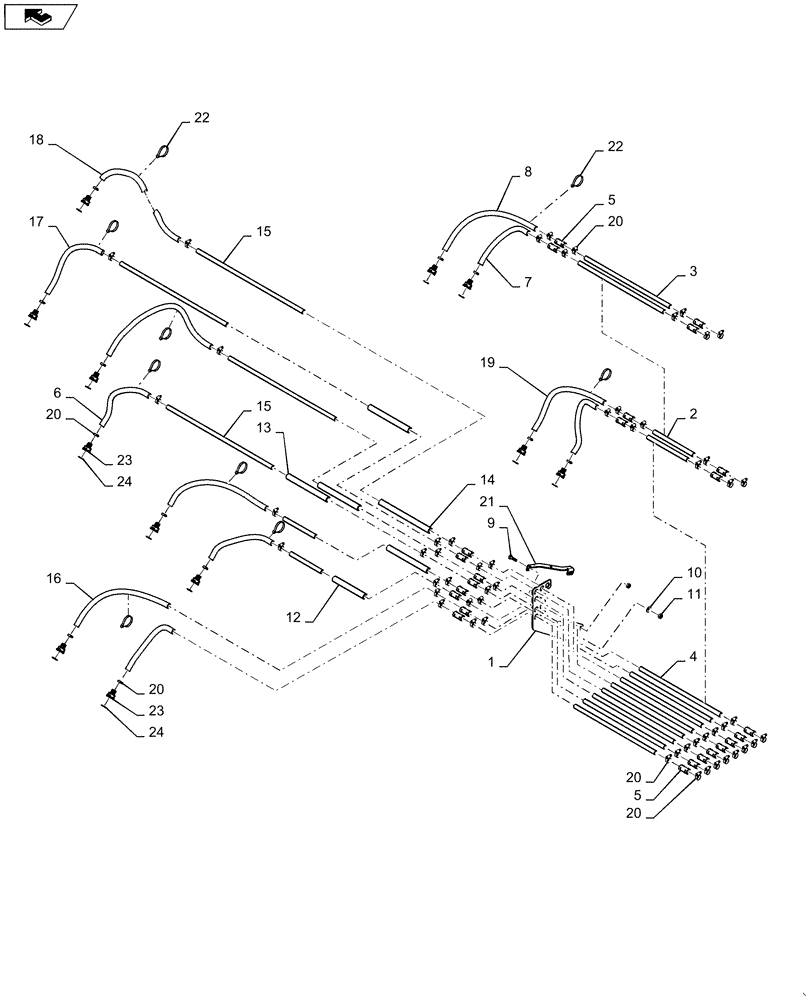

Запчасти Case IH 1260 (80.150.13[03]) - BULK FILL - HOSES LT WING 60, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

1

84135053

SUPPORT

Seed Tube 9-Hole

1шт.

2

87472366

PIPE

Bulk Fill Seed, 1" x 430 mm

2шт.

3

84203462

PIPE

Bulk Fill Seed, 1" x 1200 mm

2шт.

4

84380176

PIPE

Bulk Fill Seed, 1" x 2250 mm

8шт.

5

87482203

ADAPTER

Seed Hose 1.25" OD

24шт.

6

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 710 mm

5шт.

7

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 780 mm

1шт.

8

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1020 mm

2шт.

9

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

4шт.

10

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

11

9628503

NUT,3/8"-16, G5

4шт.

12

87472359

PIPE

Bulk Fill Seed, 1" x 340 mm

2шт.

13

84206451

PIPE

Bulk Fill Seed, 1" x 1560 mm

1шт.

14

87476290

PIPE

Bulk Fill Seed, 1" x 2010 mm

3шт.

15

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 580 mm

6шт.

16

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1090 mm

1шт.

17

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1320 mm

1шт.

18

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1800 mm

1шт.

19

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 915 mm

1шт.

20

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

72шт.

21

84208928

BRACKET

Left Hand Support

1шт.

22

87502038

CABLE TIE

CABLE STRAP Small

10шт.

23

84329267

COUPLING

1.25" Seed Hose

12шт.

24

84372879

O-RING

Seed Hose Coupling

12шт.
