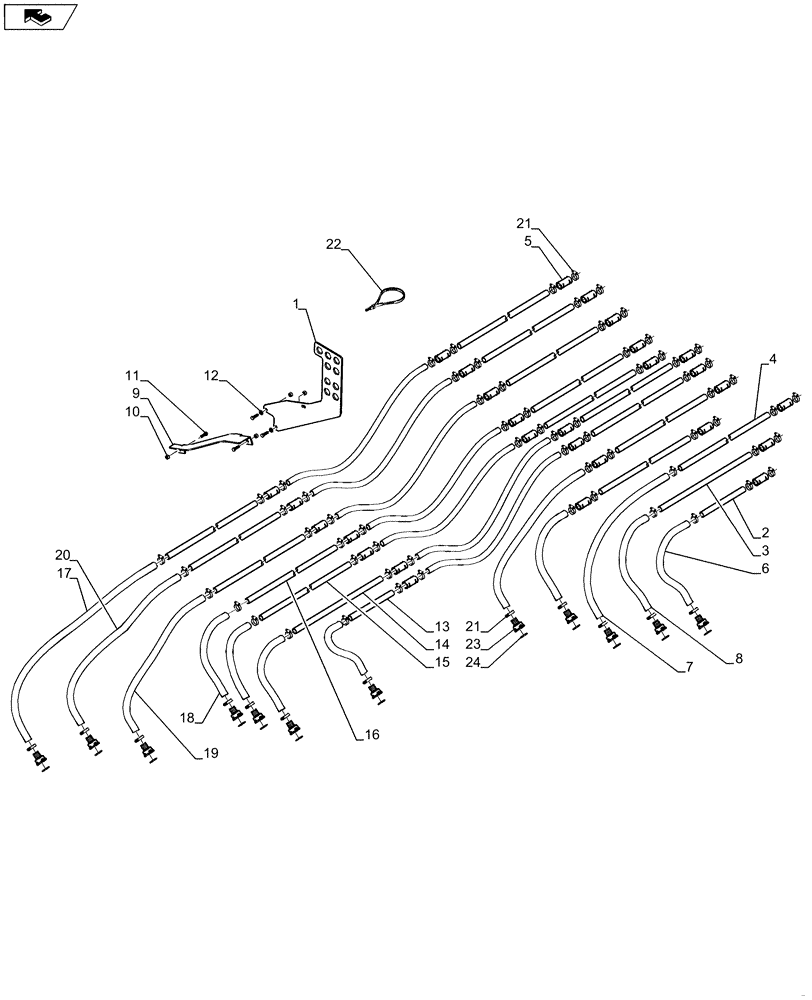

Запчасти Case IH 1260 (80.150.13[02]) - BULK FILL - HOSES LT WING 66, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

1

84135053

SUPPORT

Seed Tube 9-Hole

1шт.

2

84263910

PIPE

Bulk Fill Seed 1" x 643 mm

1шт.

3

84203462

PIPE

Bulk Fill Seed 1" x 1200 mm

2шт.

4

84380274

PIPE

Bulk Fill Seed 1" x 2210 mm

9шт.

5

87482203

ADAPTER

Seed Hose 1.25" OD

26шт.

6

87483977

HOSE

1.25" x 100', Bulk, PVC Black Spiral, Cut To 710 mm

4шт.

7

87483977

HOSE

1.25" x 100', Bulk, PVC Black Spiral, Cut To 1020 mm

2шт.

8

87483977

HOSE

1.25" x 100', Bulk, PVC Black Spiral, Cut To 780 mm

3шт.

9

84146272

BRACKET, SUPPORTING

Left Hand

1шт.

10

9628503

NUT,3/8"-16, G5

4шт.

11

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

12

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

13

87472359

PIPE

Bulk Fill Seed 1" x 340 mm

1шт.

14

87472361

PIPE

Bulk Fill Seed 1" x 700 mm

1шт.

15

87472360

PIPE

Bulk Fill Seed 1" x 1190 mm

1шт.

16

87472363

PIPE

Bulk Fill Seed 1" x 1760 mm

4шт.

17

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 1150 mm

7шт.

18

87483977

HOSE

1.25" x 100', Bulk, PVC Black Spiral, Cut To 1090 mm

1шт.

19

87483977

HOSE

1.25" x 100', Bulk, PVC Black Spiral, Cut To 2070 mm

1шт.

20

87483977

HOSE

1.25" x 100', Bulk, PVC Black Spiral, Cut To 2500 mm

1шт.

21

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

76шт.

22

87502038

CABLE TIE

CABLE STRAP (Not Shown)

10шт.

23

84329267

COUPLING

1.25" Seed Hose

12шт.

24

84372879

O-RING

Seed Hose Coupling

12шт.
