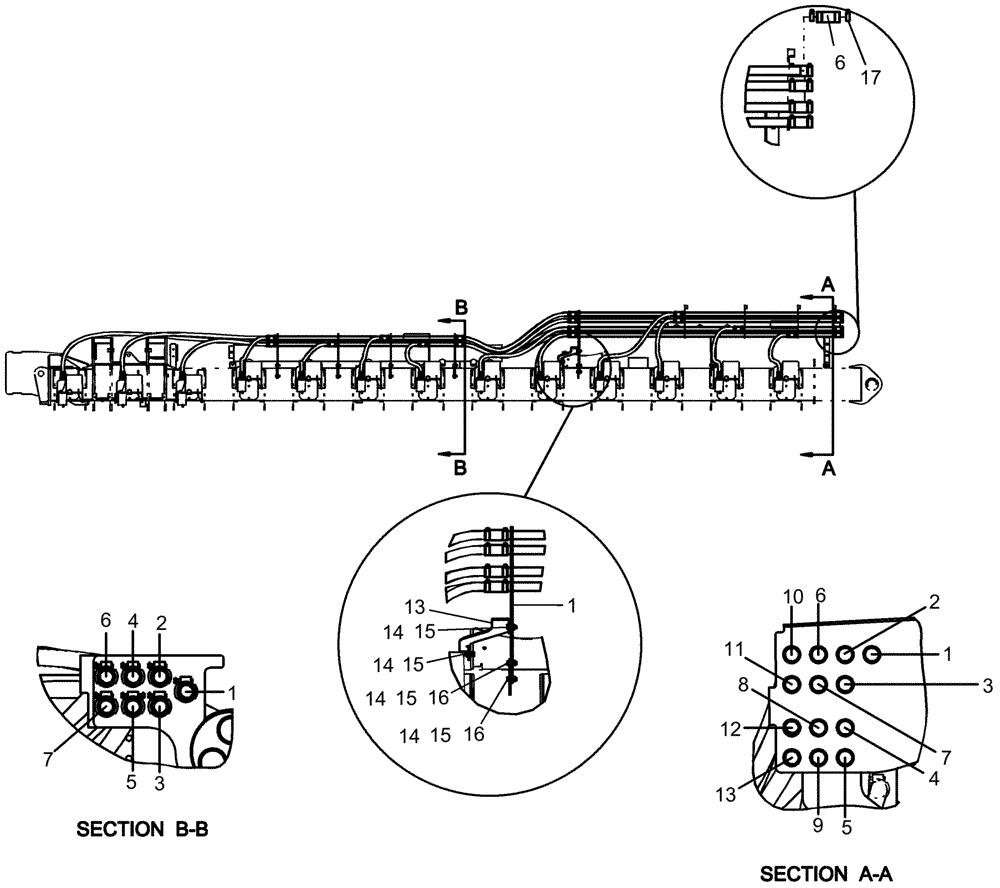

Запчасти Case IH 1260 (80.150.13[01]) - BULK FILL - HOSES LT WING 66, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING

1

84135053

SUPPORT

seed tube 9H

1шт.

2

87472366

PIPE

bulk fill seed 1" x 430 mm

1шт.

3

87472365

PIPE

bulkf fill seed 1" x 930 mm

1шт.

4

87472364

PIPE

bulk fill seed 1" x 1490 mm

2шт.

5

87472362

PIPE

bulk fill seed 1" x 2480 mm

9шт.

6

87482203

ADAPTER

seed hose 1 1/4"

40шт.

7

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 820 mm

1шт.

8

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 930 mm

1шт.

9

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 930 mm

1шт.

10

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 1400 mm

1шт.

11

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 930 mm

1шт.

12

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 1400 mm

1шт.

13

84146272

BRACKET, SUPPORTING

LH

1шт.

14

9628503

NUT,3/8"-16, G5

4шт.

15

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

16

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

17

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

80шт.
