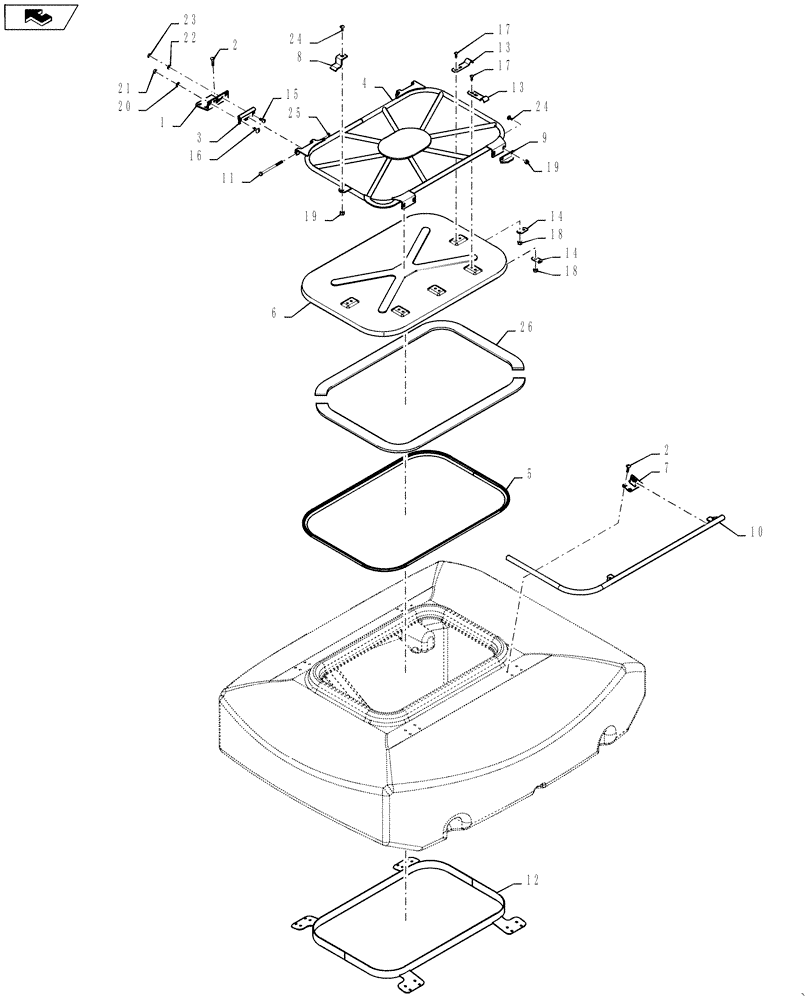

Запчасти Case IH 1260 (80.150.11) - BULK FILL - TANK LID 60BU (80) - CROP STORAGE/UNLOADING

1

87566291

BRACKET

hinge mounting

2шт.

2

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

16шт.

3

87566289

HINGE

assembly outer

2шт.

4

87625649

FRAME

lid support, Model Year 2010 And Before

1шт.

LT

1шт.

4

84325976

FRAME

Lid Support, LT, Model Year 2011

1шт.

4

87625648

FRAME

Lid support, Model Year 2010 And Before

1шт.

RT

1шт.

4

84325975

FRAME

Lid Support, RT, Model Year 2011

1шт.

5

87505890

GASKET

Lid Seal - 3486mm

1шт.

6

87566279

LID

Tank

1шт.

7

87625647

BRACKET

Latch

2шт.

8

87625644

BRACKET

Latch, Model Year 2010 And Before

1шт.

8

84361022

BRACKET

Latch, Model Year 2011

1шт.

9

87625645

BRACKET

Angle hook

2шт.

10

87625646

LEVER

Lid Clamp, Model Year 2010 And Before

1шт.

10

84577519

LEVER

Lid Clamp, Model Year 2011

1шт.

11

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

2шт.

12

87575295

SUPPORT

Tank

1шт.

13

87566292

CLIP

Lid mount, Model Year 2010 And Before

4шт.

13

84326048

CLIP

Lid Mount, Model Year 2011

4шт.

14

87566294

PLATE

Reinforcing

4шт.

15

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

2шт.

16

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

17

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

18

86629544

NUT,5/16” – 18, GR B

8шт.

19

9637692

NUT,3/8"-16, Gr B

21шт.

20

80681

LOCK WASHER,5/16"

4шт.

21

9635082

NUT,5/16" - 18, Gr 5

4шт.

22

80682

LOCK WASHER,1/4"

2шт.

23

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

24

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

25

9636698

NUT,1/2"-13, GB

2шт.

26

47425741

GASKET

Bulk Fill Tank Lid

2шт.
