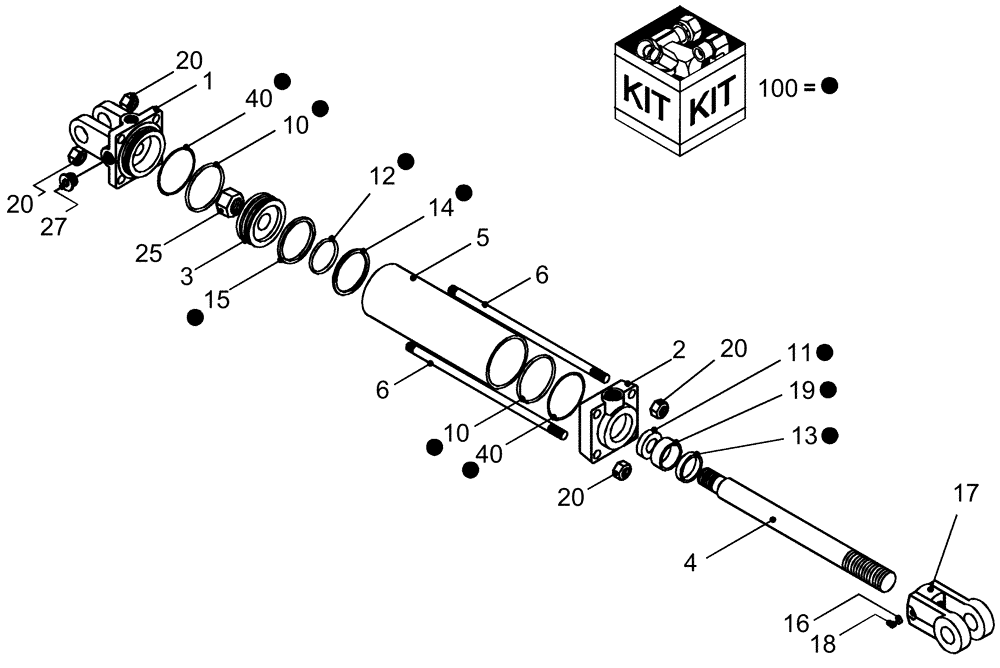

Запчасти Case IH 1260 (35.116.10) - HYDRAULIC CYLINDER - 3" X 24" NITRO (35) - HYDRAULIC SYSTEMS

1

87409445

HEAD

cylinder base 3" bore

1шт.

2

8952

CYLINDER END CAP

rod 3" Monarch

1шт.

3

87409478

PISTON

cylinder 3" bore Monarch #494734

1шт.

4

87637948

SHAFT

cylinder 3" x 10"

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

20

280431

NUT,1/2"-13, G5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

NSS

NOT SOLD SEPARAT

1шт.

31

NSS

NOT SOLD SEPARAT

2шт.

40

NSS

NOT SOLD SEPARAT

2шт.

100

9681

SEAL KIT

3" x 8" Monarch

1шт.
