Запчасти Case IH 1260 (80.150.09[04]) - BULK FILL - HOSES MIDDLE LT 90, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

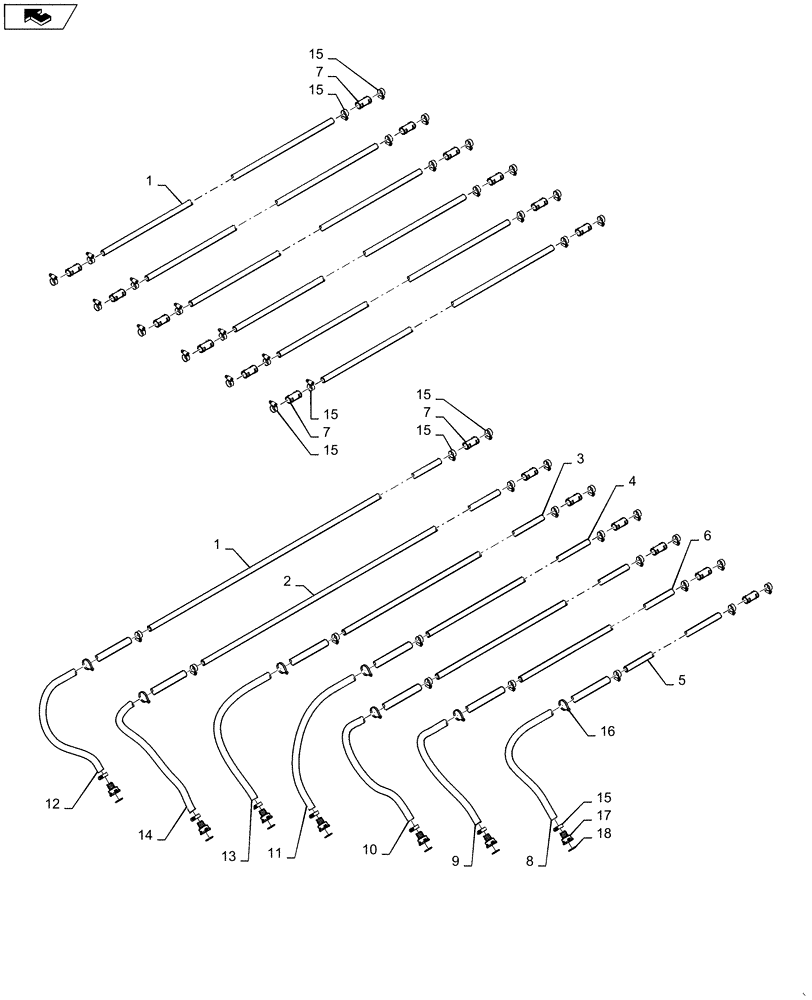

Схема запчастей Case IH 1260 - (80.150.09[04]) - BULK FILL - HOSES MIDDLE LT 90, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING
17
14
15
15
16
7
12
7
15
4
6
10
3
15
home
1
2
1
8
13
18
15
11
7
15
5
9
15

Артикул

Название

Примечание

Количество

1

84380272

PIPE

Bulk Fill Seed, 1" x 5700 mm

7шт.

2

84380179

PIPE

Bulk Fill Seed, 1" x 5200 mm

1шт.

3

84256333

PIPE

Bulk Fill Seed, 1" x 3908 mm

1шт.

4

84263907

PIPE

Bulk Fill Seed, 1" x 2930 mm

2шт.

5

84380273

PIPE

Bulk Fill Seed, 1" x 1020 mm

1шт.

6

84381341

PIPE

Bulk Fill Seed, 1" x 2040 mm

1шт.

7

87482203

ADAPTER

Seed Hose 1.25" OD

18шт.

8

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 840 mm

1шт.

9

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 915 mm

1шт.

10

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1020 mm

1шт.

11

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1090 mm

1шт.

12

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 990 mm

1шт.

13

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1020 mm

1шт.

14

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1800 mm

1шт.

15

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

51шт.

16

87502038

CABLE TIE

CABLE STRAP Small

5шт.

17

84329267

COUPLING

1.25" Seed Hose

7шт.

18

84372879

O-RING

Mini Hopper

7шт.

Выбрано товаров: 18
