Запчасти Case IH 1260 (80.150.09[02]) - BULK FILL - HOSES MIDDLE LT 80, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

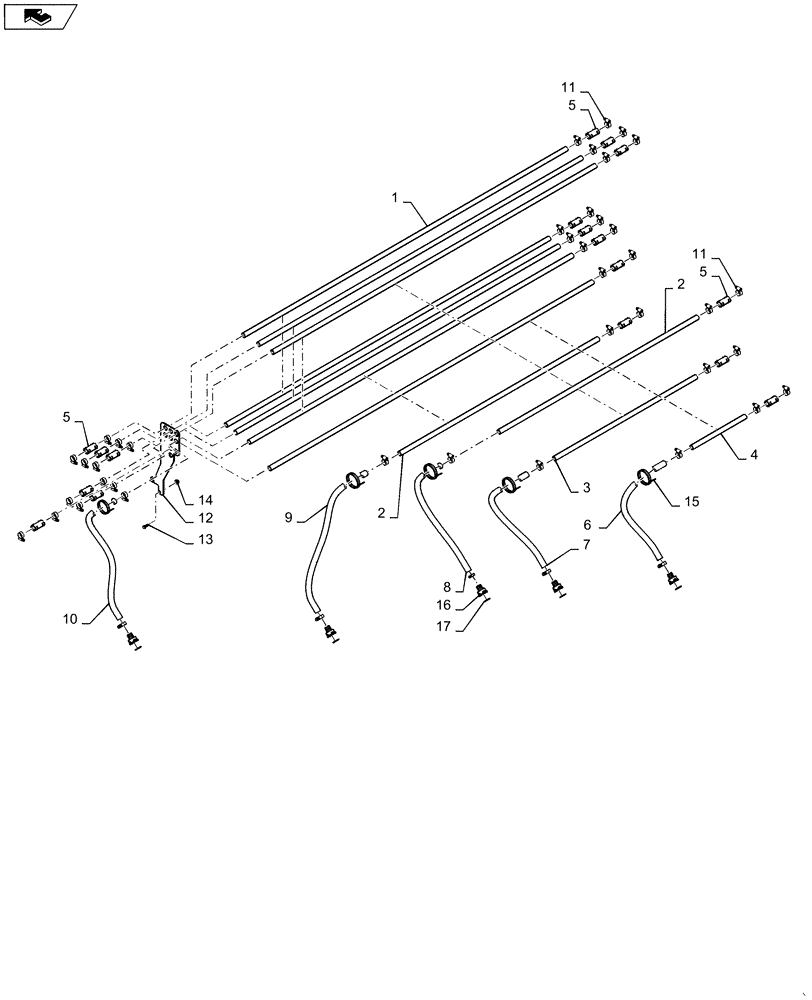

Схема запчастей Case IH 1260 - (80.150.09[02]) - BULK FILL - HOSES MIDDLE LT 80, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING
4
15
13
12
5
5
5
16
10
11
9
6
8
3
11
14
2
2
17
home
7
1

Артикул

Название

Примечание

Количество

1

84381354

PIPE

Bulk Fill Seed, 1" x 421 mm

7шт.

2

84263907

PIPE

Bulk Fill Seed, 1" x 2930 mm

2шт.

3

84381341

PIPE

Bulk Fill Seed, 1" x 2040 mm

1шт.

4

84380273

PIPE

Bulk Fill Seed, 1" x 1020 mm

1шт.

5

87482203

ADAPTER

Seed Hose 1.25" OD

16шт.

6

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 840 mm

1шт.

7

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 915 mm

1шт.

8

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1020 mm

1шт.

9

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1090 mm

1шт.

10

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 1800 mm

1шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

43шт.

12

84223684

SUPPORT TUBE,584.50 mm L

Seed, 9-Hole

1шт.

13

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

15

87502038

CABLE TIE

CABLE STRAP Small

5шт.

16

84329267

COUPLING

1.25" Seed Hose

5шт.

17

84372879

O-RING

Seed Hose Coupling

5шт.

Выбрано товаров: 17
