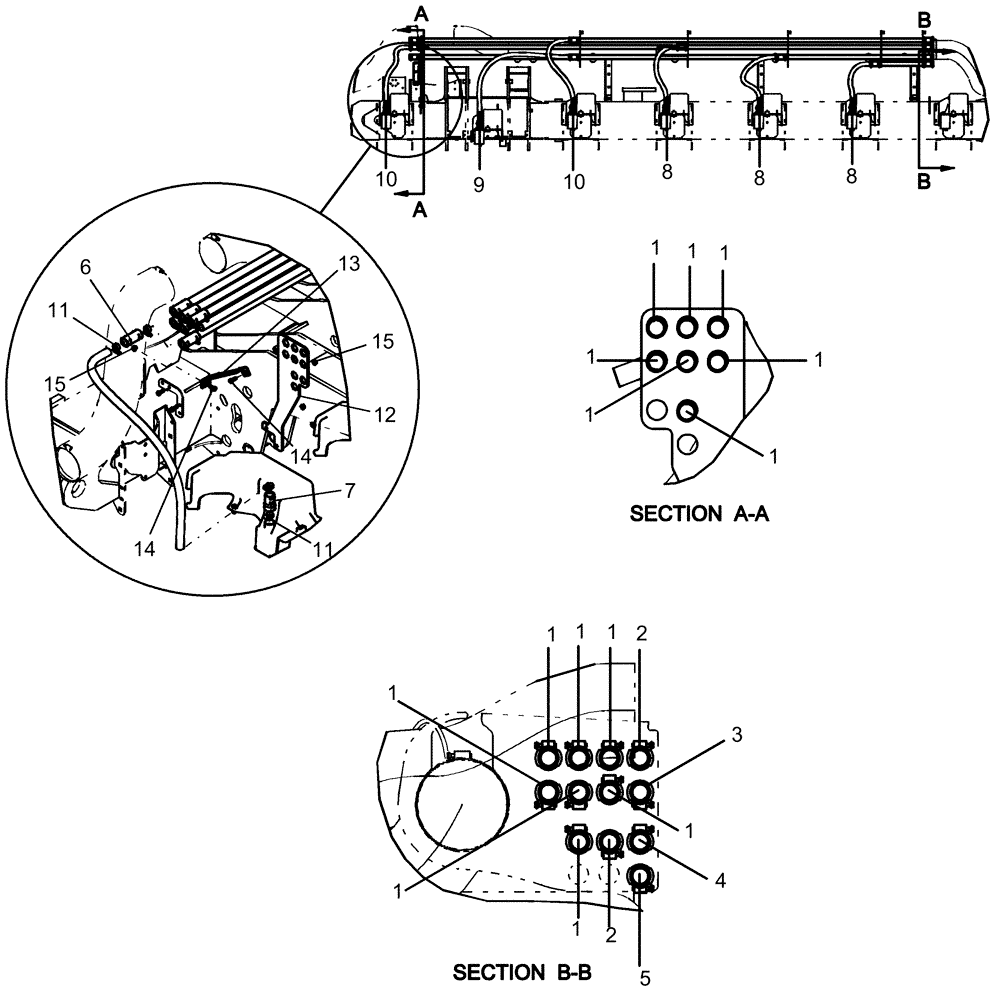

Запчасти Case IH 1260 (80.150.09[01]) - BULK FILL - HOSES MIDDLE LT 80, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING

1

84203459

PIPE

Bulk Fill Seed, 1" id x 4180 mm

7шт.

Transition pipe to LH outer wing

1шт.

2

87476288

PIPE

bulk fill seed 1" x 2890 mm

2шт.

3

87476290

PIPE

bulk fill seed 1" x 2010 mm

1шт.

4

84203462

PIPE

Bulk Fill Seed, 1" x 1200 mm

1шт.

5

87472366

PIPE

bulk fill seed 1" x 430 mm

1шт.

6

87482203

ADAPTER

seed hose 1 1/4"

24шт.

7

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

6шт.

8

87483976

HOSE

1" x 100', bulk, black

3шт.

Cut to 1150 mm

1шт.

9

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 1530 mm

1шт.

10

87483976

HOSE

1" x 100', bulk, black

2шт.

Cut to 1270 mm

1шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

60шт.

12

84223684

SUPPORT TUBE,584.50 mm L

Seed, 9H

1шт.

13

84203142

SUPPORT TUBE,244.50, 40 mm L

Seed Plate

1шт.

14

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.
