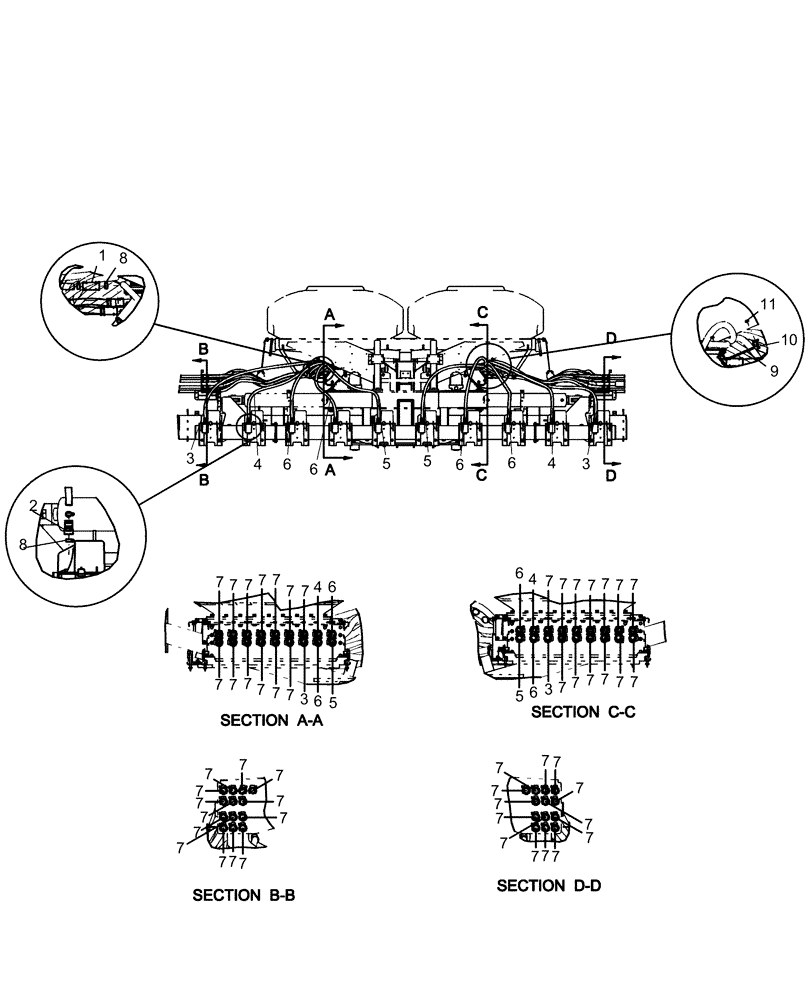

Запчасти Case IH 1260 (80.150.08[04]) - BULK FILL - HOSES CENTER 22" (80) - CROP STORAGE/UNLOADING

1

87482203

ADAPTER

seed hose 1 1/4"

36шт.

2

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

10шт.

3

87483976

HOSE

1" x 100', bulk, black

2шт.

Cut to 4190 mm

1шт.

4

87584647

HOSE,25.40 mm ID x 3683.00 mm

Bulk Fill PVC Clear Spiral

2шт.

5

87483976

HOSE

1" x 100', bulk, black

2шт.

Cut to 3560 mm

1шт.

6

87483976

HOSE

1" x 100', bulk, black

4шт.

Cut to 3430 mm

1шт.

7

87483976

HOSE

1" x 100', bulk, black

26шт.

Cut to 2570 mm

1шт.

8

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

92шт.

9

87502874

BRACKET

hose support

2шт.

10

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

11

425-284

FLANGE NUT,Flg, 1/4"-20.G5

4шт.

12

84329267

COUPLING

1.25" Seed Hose (Not Shown)

10шт.

13

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 101.6 mm (Not Shown)

10шт.

14

84372879

O-RING

Seed Hose Coupling (Not Shown)

10шт.

115

87500093

HOSE

Flexible Casble Wrap (not Shown)

2шт.
