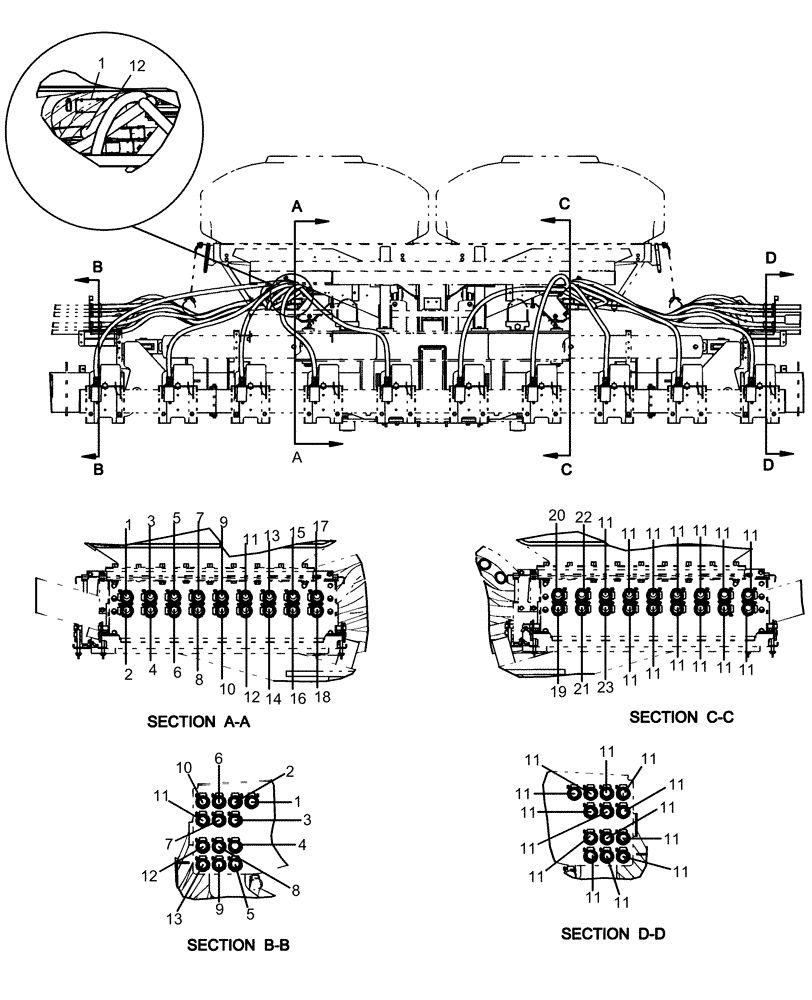

Запчасти Case IH 1260 (80.150.08[03]) - BULK FILL - CENTER HOSES 22" (80) - CROP STORAGE/UNLOADING

1

87482203

ADAPTER

seed hose 1 1/4"

36шт.

2

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

10шт.

3

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 4045 mm

1шт.

4

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3415 mm

1шт.

5

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3310 mm

1шт.

6

87483976

HOSE

1" x 100', bulk, black

2шт.

Cut to 2570 mm

1шт.

7

87584647

HOSE,25.40 mm ID x 3683.00 mm

Bulk Fill PVC Clear Spiral

1шт.

Cut to 4045 mm

1шт.

8

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3683 mm

1шт.

9

87483976

HOSE

1" x 100', bulk, black

2шт.

Cut to 3415 mm

1шт.

10

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3310 mm

1шт.

11

87483976

HOSE

1" x 100', bulk, black

26шт.

Cut to 3430 mm

1шт.

12

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

92шт.

13

87502874

BRACKET

hose support

2шт.

14

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

15

425-284

FLANGE NUT,Flg, 1/4"-20.G5

4шт.

16

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3430 mm

1шт.

17

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3310 mm

1шт.

18

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3415 mm

1шт.

19

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3415 mm

1шт.

20

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3310 mm

1шт.

21

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3430 mm

1шт.

22

87584647

HOSE,25.40 mm ID x 3683.00 mm

Bulk Fill PVC Clear Spiral

1шт.

Cut to 3683 mm

1шт.

23

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 4045 mm

1шт.
