Запчасти Case IH 1260 (80.150.08[01]) - BULK FILL - CENTER HOSES 20" (80) - CROP STORAGE/UNLOADING

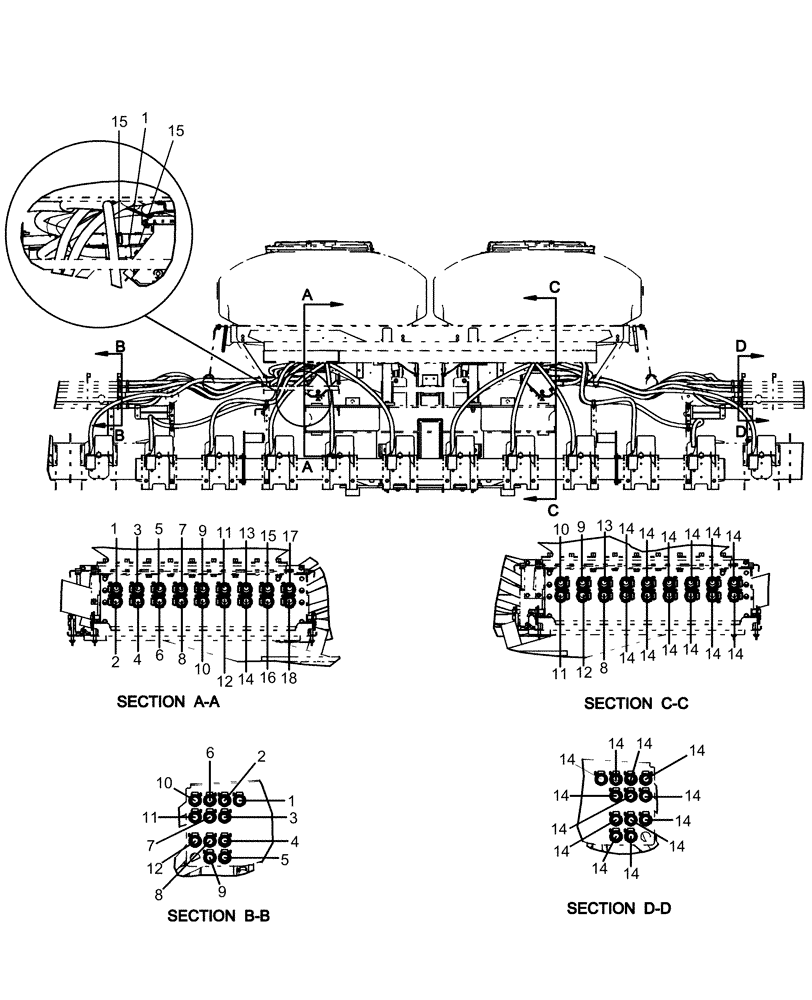

Схема запчастей Case IH 1260 - (80.150.08[01]) - BULK FILL - CENTER HOSES 20" (80) - CROP STORAGE/UNLOADING
15
10
11
14
14
14
12
14
11
1
13
14
18
10
17
14
6
1
3
14
15
10
9
14
14
7
14
4
14
14
5
15
12
14
2
6
8
8
14
16
14
14
9
5
13
14
3
14
14
14
14
14
14
4
9
14
1
2
8
12
7
14
11

Артикул

Название

Примечание

Количество

1

87482203

ADAPTER

seed hose 1 1/4"

36шт.

2

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 4190 mm

1шт.

3

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3460 mm

1шт.

4

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3415 mm

1шт.

5

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3380 mm

1шт.

6

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3220 mm

1шт.

7

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 4045 mm

1шт.

8

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3820 mm

1шт.

9

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3380 mm

1шт.

10

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3380 mm

1шт.

11

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3380 mm

1шт.

12

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3150 mm

1шт.

13

87483976

HOSE

1" x 100', bulk, black

1шт.

Cut to 3310 mm

1шт.

14

87483976

HOSE

1" x 100', bulk, black

24шт.

Cut to 2570 mm

1шт.

15

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

72шт.

16

87502874

BRACKET

hose support

2шт.

17

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

18

425-284

FLANGE NUT,Flg, 1/4"-20.G5

8шт.

19

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

6шт.

20

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

21

9628503

NUT,3/8"-16, G5

2шт.

22

87446019

BRACKET

hose support

2шт.

23

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

20шт.

24

84329267

COUPLING

1.25" Seed Hose (Not Shown)

10шт.

25

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 101.6 mm (Not Shown)

10шт.

26

84372879

O-RING

Seed Hose Coupling (Not Shown)

10шт.

27

87500093

HOSE

Flexible Casble Wrap (not Shown)

2шт.

Выбрано товаров: 40
