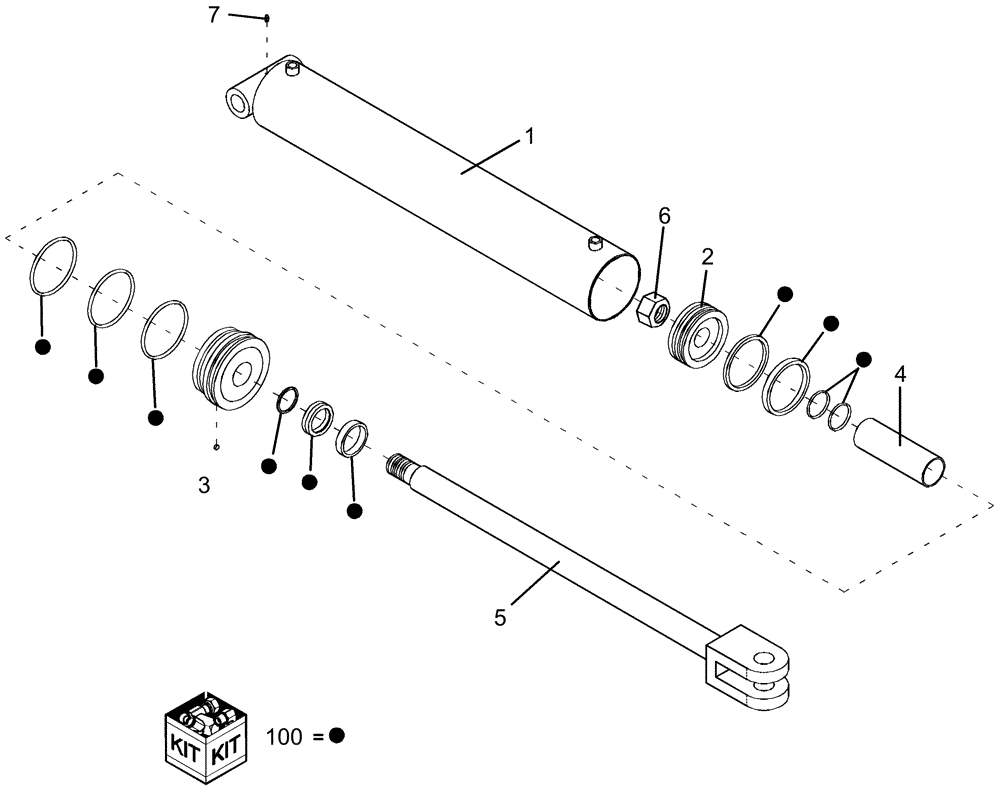

Запчасти Case IH 1260 (35.116.09) - HYDRAULIC CYLINDER - 6" X 23" (35) - HYDRAULIC SYSTEMS

0

87753020

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 582.93mm Stroke

6" x 22.95", 2 1/2" rod

1шт.

1

NSS

NOT SOLD SEPARAT

1шт.

2

84147387

PISTON

6" hydraulic cylinder

1шт.

3

84147392

HEAD

6" cylinder front

1шт.

4

84147388

PISTON ROD

6" hydraulic cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

84151725

LOCK NUT

prev torque

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

1шт.

100

84147394

SEAL KIT

6" hydraulic cylinder

1шт.
