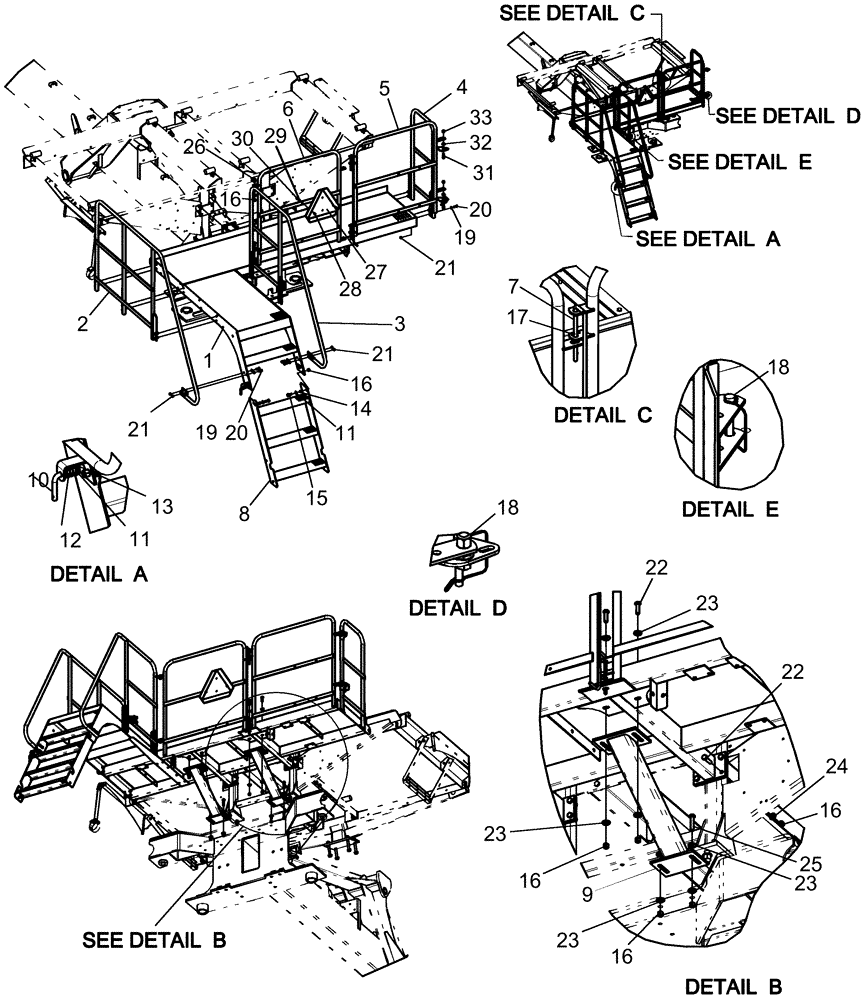

Запчасти Case IH 1260 (80.150.03) - BULK FILL - DECK & LADDERS (80) - CROP STORAGE/UNLOADING

1

84204852

PLATFORM

Bulk Fill Deck With Decal

1шт.

2

87473262

SIDE RAIL

bulk fill deck end, LH

1шт.

3

87473264

SIDE RAIL

bulk fill ladder RH

1шт.

4

87473260

SIDE RAIL

bulk fill end, RH

1шт.

5

87473261

SIDE RAIL

bulk fill gate, RH

1шт.

6

87473263

SIDE RAIL

bulk fill gate, LH

1шт.

7

87488693

ROD

gate lock assembly

1шт.

8

87473265

LADDER

bulk fill deck access

1шт.

9

87488692

BRACKET

deck diagonal support

2шт.

10

87627224

PIN

lock

1шт.

11

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

3шт.

12

1969125C1

SPRING

C .08 wire x 1.07 od x 1.98 long

1шт.

13

82895491

LOCK PIN,4.76mm OD x 25.4mm L, Slotted

1шт.

14

87565480

TUBE

hinge

2шт.

15

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

16

87333862

NUT

1/2"-13, GB

20шт.

17

86637813

PIN,3.17mm OD x 25mm L, Coiled

1шт.

18

87574044

PIN

safety with tab lock

2шт.

19

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

18шт.

20

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

18шт.

21

232-5316

FLANGE NUT,Flg, 3/8"-16

18шт.

22

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

12шт.

23

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

16шт.

24

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

8шт.

25

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

26

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

27

412742A1

WARNING SIGN

smv steel back 4 holes

1шт.

28

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

29

496-21028

WASHER,.281" x 5/8" x .075", HDN

2шт.

30

231-4144

NUT,1/4"-20, GB

2шт.

31

86512179

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/2"

2шт.

32

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

33

87333862

NUT

1/2"-13, GB

2шт.
