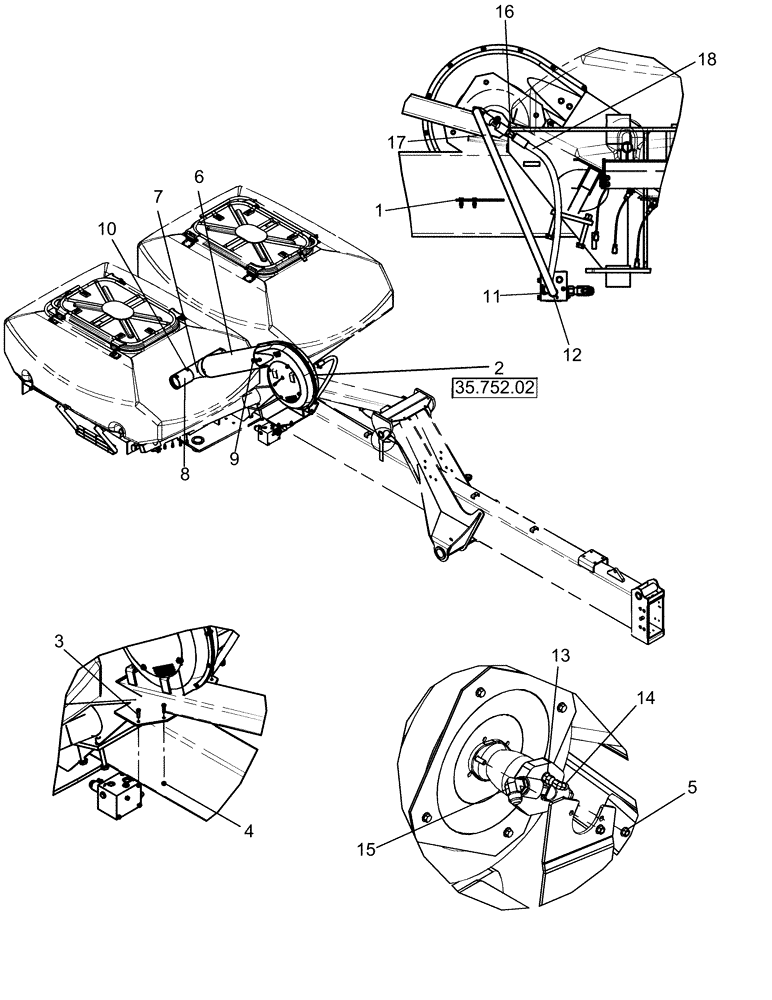

Запчасти Case IH 1260 (80.150.02) - BULK FILL - FAN (80) - CROP STORAGE/UNLOADING

1

84146297

MOUNT

bulk fill fan

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

See Figure 35.752.02

1шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

87039402

NUT,3/8"-16, GB

4шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

6

84147676

HOSE,203.20 mm ID x 15240.00 mm

Bulk Fill Blower

1шт.

Cut 842.9 mm from bulk hose

1шт.

7

84130043

MANIFOLD

8" x 5" Reducer Tee

1шт.

8

350642A1

HOSE

black 5" flexible 50' roll

2шт.

Cut 188.9 mm from bulk hose

1шт.

9

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

2шт.

10

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

4шт.

11

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

1шт.

12

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

13

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

14

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

15

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

16

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

1шт.

17

87463224

HYDRAULIC HOSE

3/4" x 55" (1400 mm) fl

1шт.

18

87748411

HYDRAULIC HOSE

16 mm x 1050 mm fl

1шт.
