Запчасти Case IH 1260 (80.150.01[02]) - BULK FILL - TANK FRAME, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

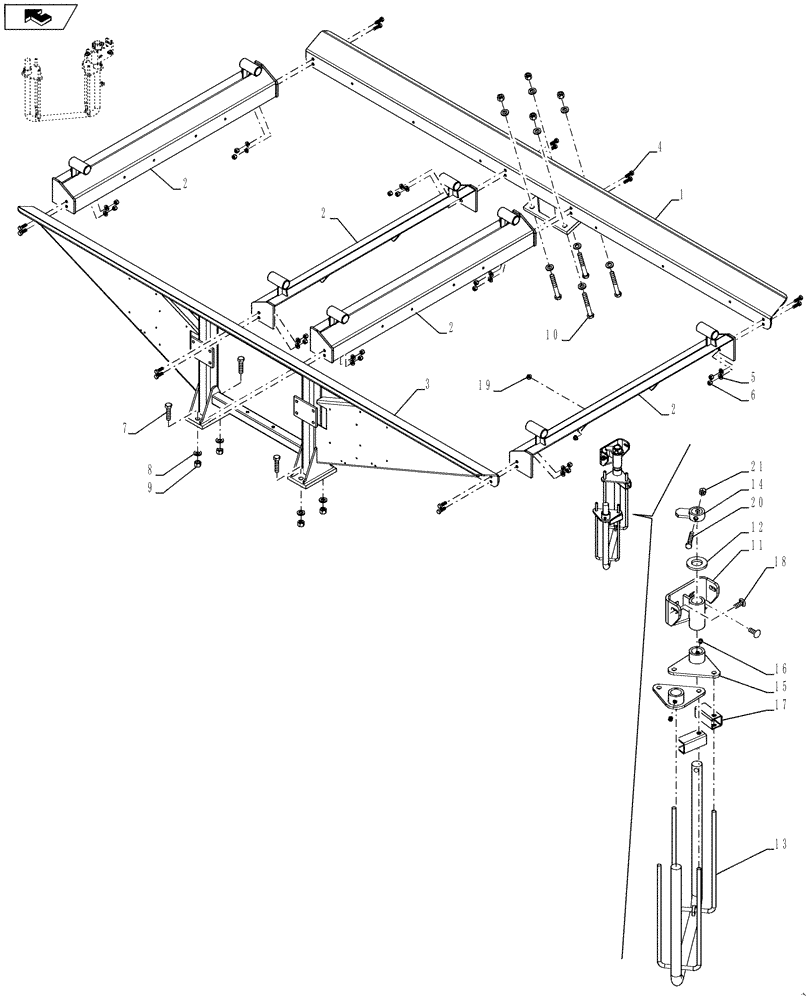

Схема запчастей Case IH 1260 - (80.150.01[02]) - BULK FILL - TANK FRAME, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING
19
12
11
9
6
18
17
2
2
7
16
home
20
5
2
15
4
2
8
3
14
21
13
10
1

Артикул

Название

Примечание

Количество

1

87473266

FRAME

Front Bulk Fill Support

1шт.

2

87557044

BRACKET

Bulk Fill Tank Side

4шт.

3

87473267

FRAME

Rear Bulk Fill Tank

1шт.

4

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

16шт.

5

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

16шт.

6

87333862

NUT

1/2"-13, GB

16шт.

7

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

8

86624162

WASHER,0.81" ID x 1.5" OD x 0.18" Thk

12шт.

9

84156165

LOCK NUT

3/4 GRB

8шт.

10

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

4шт.

11

84374578

PIVOT

Hose Bracket

2шт.

12

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

2шт.

13

84374568

SUPPORT

Bar, Hose

2шт.

14

84374574

STOP

Hose support

2шт.

15

84374570

RETAINER COLLAR

Hose Lock

4шт.

16

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

4шт.

17

84374584

TUBE

Spacer

4шт.

18

280503

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

20

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

21

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

Выбрано товаров: 21
