Запчасти Case IH 1260 (80.150.01[01]) - BULK FILL - TANK FRAME, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING

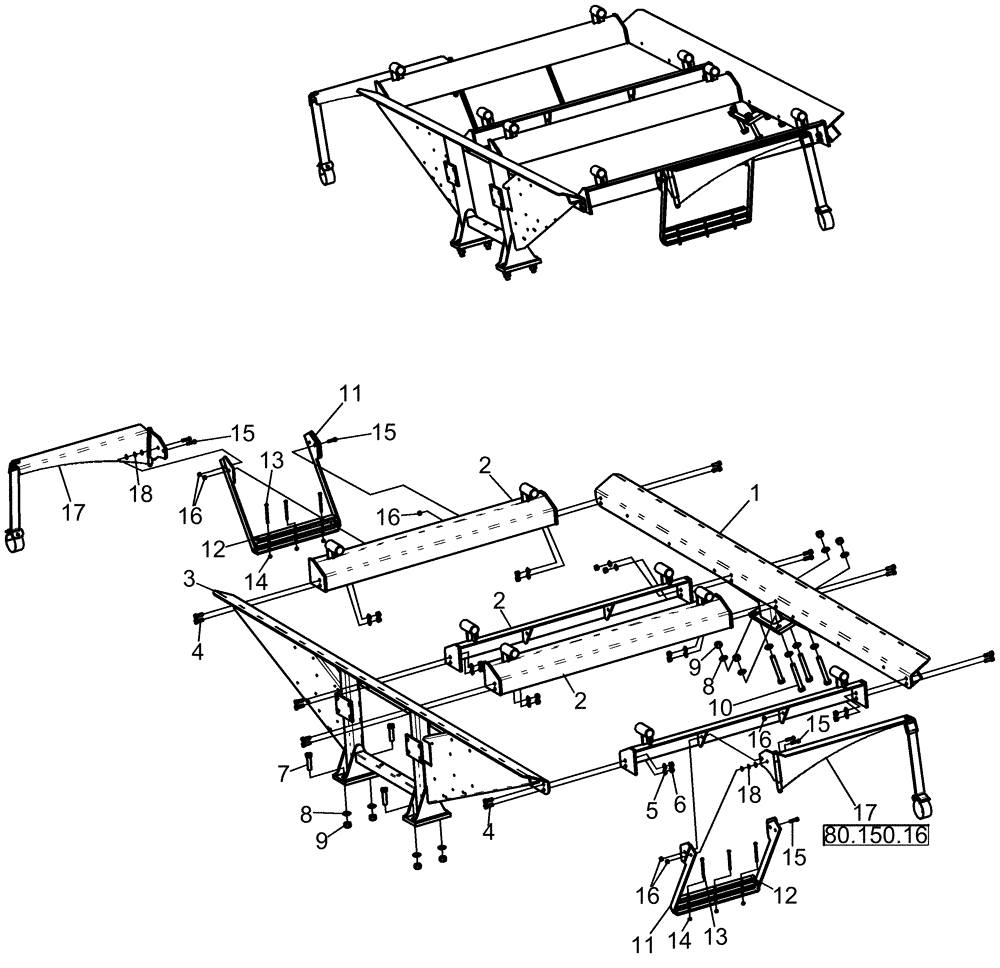

Схема запчастей Case IH 1260 - (80.150.01[01]) - BULK FILL - TANK FRAME, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING
18
4
11
8
14
2
13
17
16
2
80.150.16
7
11
5
1
10
2
6
14
15
13
9
8
12
15
9
15
4
16
16
16
12
18
15
3
17

Артикул

Название

Примечание

Количество

1

87473266

FRAME

front bulk fill support

1шт.

2

87557044

BRACKET

bulk fill tank side

4шт.

3

87473267

FRAME

rear bulk fill tank

1шт.

4

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

16шт.

5

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

16шт.

6

87333862

NUT

1/2"-13, GB

16шт.

7

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

8

86624162

WASHER,0.81" ID x 1.5" OD x 0.18" Thk

12шт.

9

84156165

LOCK NUT

8шт.

10

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

4шт.

11

87583062

BRACKET

bulk fill inductor hose routing

2шт.

12

87583064

CLAMP

bulk fill inductor hose

4шт.

13

280657

BOLT,Hex, 1/4" - 20 x 4", Gr 5

6шт.

14

280129

NUT,1/4"-20

6шт.

15

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

4шт.

16

87039402

NUT,3/8"-16, GB

4шт.

17

NSS

NOT SOLD SEPARAT

ARM swing

2шт.

See Figure 80.150.16

1шт.

18

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

Выбрано товаров: 19
