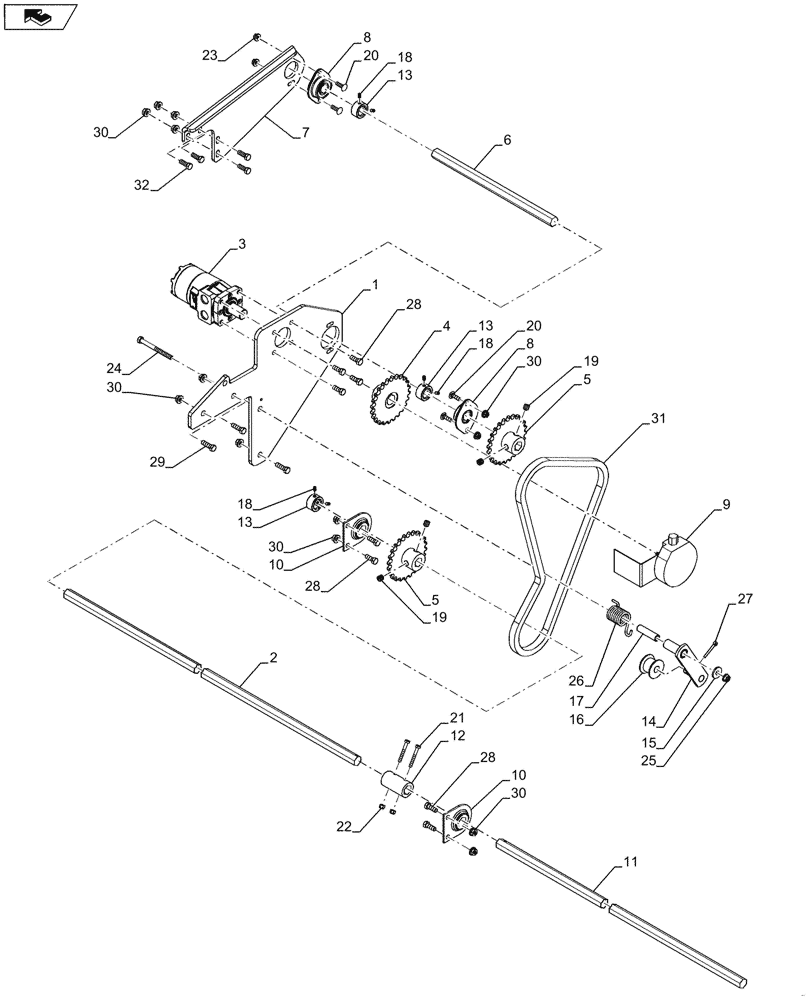

Запчасти Case IH 1260 (75.300.03[02]) - DRIVE - OUTER, MODEL YEAR 2011 (75) - SOIL PREPARATION

1

84365474

PLATE

Motor Mount

1шт.

2

84174518

SHAFT

Transmission Input 7/8 Hex

1шт.

3

87752460

HYDRAULIC MOTOR

Seed Drive

1шт.

4

87694455

SPROCKET

24T

1шт.

5

87503169

SPROCKET

24T, 50 Chain

2шт.

6

84174520

SHAFT

Transmission Input 7/8 Hex

1шт.

7

84366049

SUPPORT

Crossover Drive

1шт.

8

134158C92

BALL BEARING,22.5mm ID

7/8 Hex Bore

2шт.

9

87495545

SENSOR

Hydraulic Drive

1шт.

10

102724A2

BALL BEARING,22.6mm ID

Hanger

2шт.

11

84130038

SHAFT

Transmission Input 7/8 Hex

1шт.

12

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

Seed Drive

1шт.

13

22224

COLLAR

Lock, 7/8 Hex Bore

3шт.

14

87550916

TENSIONER

Chain

1шт.

15

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

1шт.

16

1277726C1

ROLLER,48mm OD x 34mm L

Idler

1шт.

17

87505783

SLEEVE

Tensioner Pivot

1шт.

18

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

8шт.

19

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

4шт.

20

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

21

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

22

20356

NUT,1/4"-20, GB

2шт.

23

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

24

86505979

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

1шт.

25

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

26

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

1шт.

26

87758366

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, LH

1шт.

27

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

28

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

29

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

30

247780

SERRATED NUT,Flg, USR, 3/8"-16

11шт.

31

84536442

CHAIN,#40

Seed Drive Roller #40

1шт.

32

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.
