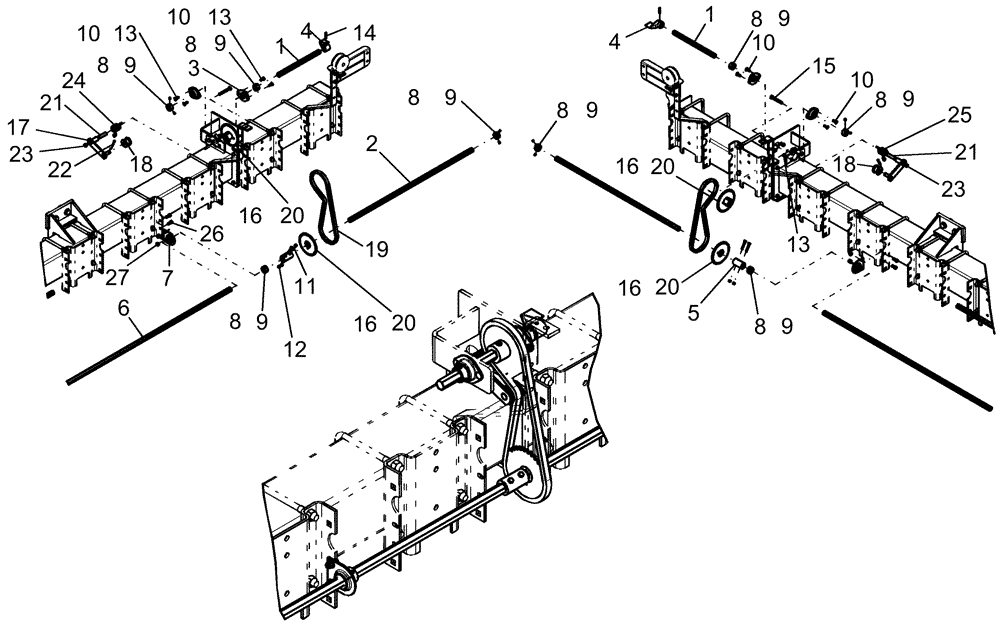

Запчасти Case IH 1260 (75.300.02) - DRIVE - CENTER (75) - SOIL PREPARATION

1

87495544

SHAFT

hex, 22 mm x 346 mm fl

2шт.

2

84174517

SHAFT

Hex, 22 mm x 1041 mm

2шт.

3

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

4шт.

4

87539852

COUPLING

cross over drive

2шт.

5

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

seed drive

2шт.

6

84174581

SHAFT

Hex, 22 mm x 1420 mm

2шт.

7

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

4шт.

8

22224

COLLAR

lock, 7/8" id

8шт.

9

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

16шт.

10

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

11

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

12

231-4144

NUT,1/4"-20, GB

4шт.

13

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

14

87016635

PIN,6.35mm OD x 38.1mm L

2шт.

15

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

2шт.

16

353037A1

SPROCKET

34 tooth

4шт.

17

87550916

TENSIONER

chain

2шт.

18

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

19

84128380

CHAIN

seed drive

2шт.

20

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

21

87505783

SLEEVE

tensioner pivot 10.33 mm id x 15.88 mm od x 60 mm long

2шт.

22

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

23

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

24

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

1шт.

25

87758366

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, LH

1шт.

26

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

27

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.
