Запчасти Case IH 1260 (75.200.35[01]) - ROW UNIT - DISC OPENER & GAUGE WHEEL, WITH RH LEADING DISC OPENER (LH SIDE OF PLANTER) (75) - SOIL PREPARATION

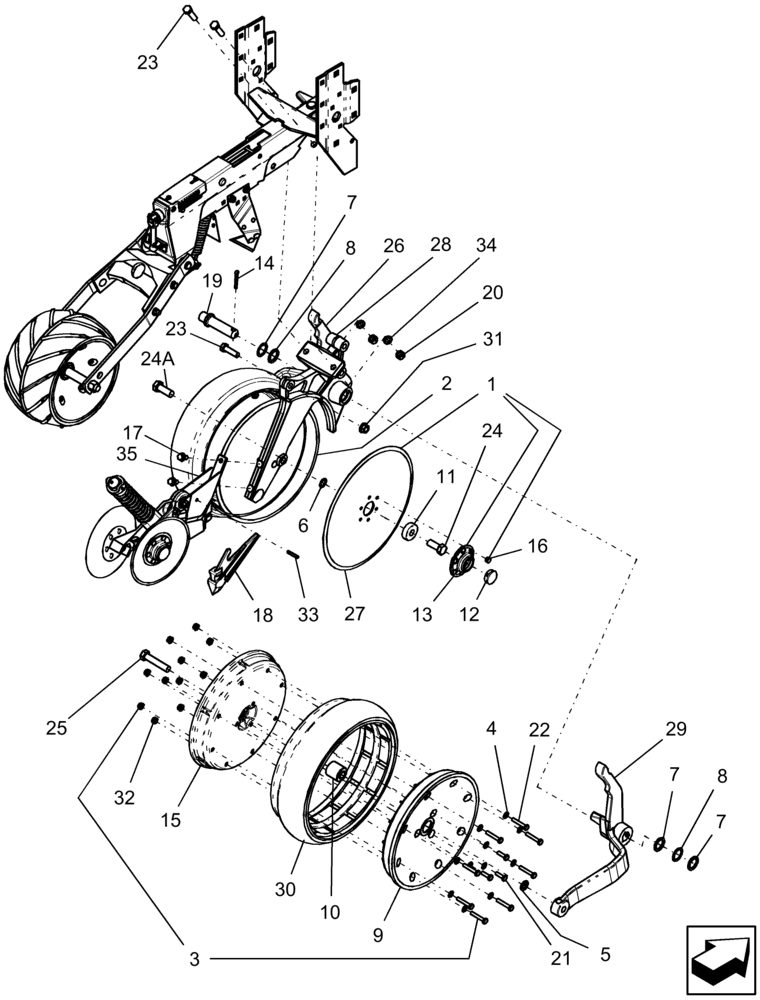

Схема запчастей Case IH 1260 - (75.200.35[01]) - ROW UNIT - DISC OPENER & GAUGE WHEEL, WITH RH LEADING DISC OPENER (LH SIDE OF PLANTER) (75) - SOIL PREPARATION
4
8
16
23
27
20
10
7
26
7
12
5
28
30
1
18
34
3
29
17
7
8
19
23
24
32
21
22
24a
14
11
35
25
13
33
31
2
6
9
15

Артикул

Название

Примечание

Количество

1

90850C92

DISC

OPENER ASSY, 14" STD LEADING, Includes disc, bearing and rivets

1шт.

2

90851C92

DISC

OPENER ASSY, 14" STD TRAILING - Includes disc, bearing and rivets

1шт.

3

87604747

WHEEL ASSY

4.5 X 16 gauge nylon

2шт.

3

84236944

WHEEL

Assembly, 2 3/4" x 16" Gauge

2шт.

4

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

22шт.

5

87023159

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

41/64" x 1.047" x .134", HDN

2шт.

6

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

1шт.

7

86624173

WASHER,1.09" ID x 1.5" OD x 0.06" Thk

4шт.

8

86624174

WASHER,1.09" ID x 1.5" OD x 0.12" Thk

6шт.

9

87604021

WHEEL DISC

black nylon half, 16" cleaner wheel

2шт.

Used with wheel assembly 306031A1

1шт.

10

324461A1

BALL BEARING

16 mm bore x 40 mm wide

2шт.

11

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id

4шт.

11

1268017C91GV

BEARING

Value, Ball Bearing

4шт.

12

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

4шт.

13

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

2шт.

14

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

15

87604612

WHEEL

black steel half, 16" cleaner wheel

2шт.

Used with wheel assembly 306031A1

1шт.

15

87604805

WHEEL DISC

double disk

2шт.

Used with wheel assembly 413863A1

1шт.

16

86624111

RIVET,6.35mm OD x 14.29mm L

24шт.

17

1263977C1

BOLT

lk 3/8"-16 x 3/4", G8 with chemical lock

2шт.

18

436702A1

POINT

cast furrow point, complete

1шт.

19

175598A1

PIN,25.4mm OD x 120mm L

flanged 1" od hardened with 1"-12 threaded end

2шт.

20

280431

NUT,1/2"-13, G5

2шт.

21

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

6шт.

22

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

16шт.

Used with wheel assembly 306031A1

1шт.

22

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

Used with wheel assembly 413863A1

1шт.

23

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

24

88685

BOLT,Hex, 5/8" x 1 1/2", Gr 8, Full Thd

1шт.

RH wheel

1шт.

24a

86622982

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

Hex, 5/8"-11 x 1 3/4", G8, LH, Full Thd

1шт.

LH wheel

1шт.

25

87023126

BOLT,Hex, 5/8" - 11 x 3", LH Thread, Gr 5

1шт.

RH wheel

1шт.

25

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

LH wheel

1шт.

26

86983484

ARM

cast gauge wheel LH

1шт.

27

1337971C1

DISC

355.6 mm x 3.5 mm 6-hole opener/square

2шт.

28

436708A1

SUPPORT

cast disc LH

1шт.

29

86983485

ARM

cast gauge wheel RH

1шт.

30

87602293

COMPACTOR WHEEL

4.5 x 16 gauge

2шт.

Used with wheel assembly 306031A1

1шт.

30

87602561

TYRE/TIRE

3 x 16 narrow gauge

2шт.

Used with wheel assembly 413863A1

1шт.

31

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

32

145458

SERRATED NUT,5/16"-18 GR 5 ZND

26шт.

33

87524

LOCK PIN,6.35mm OD x 34.92mm L, Slotted

1шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

35

84243285

SHOE

Assembly, Seed With In Furrow Fertilizer Slot

1шт.

Выбрано товаров: 53
