Запчасти Case IH 1260 (75.200.33[01]) - ROW UNIT - RESIDUE MANAGER, NARROW (75) - SOIL PREPARATION

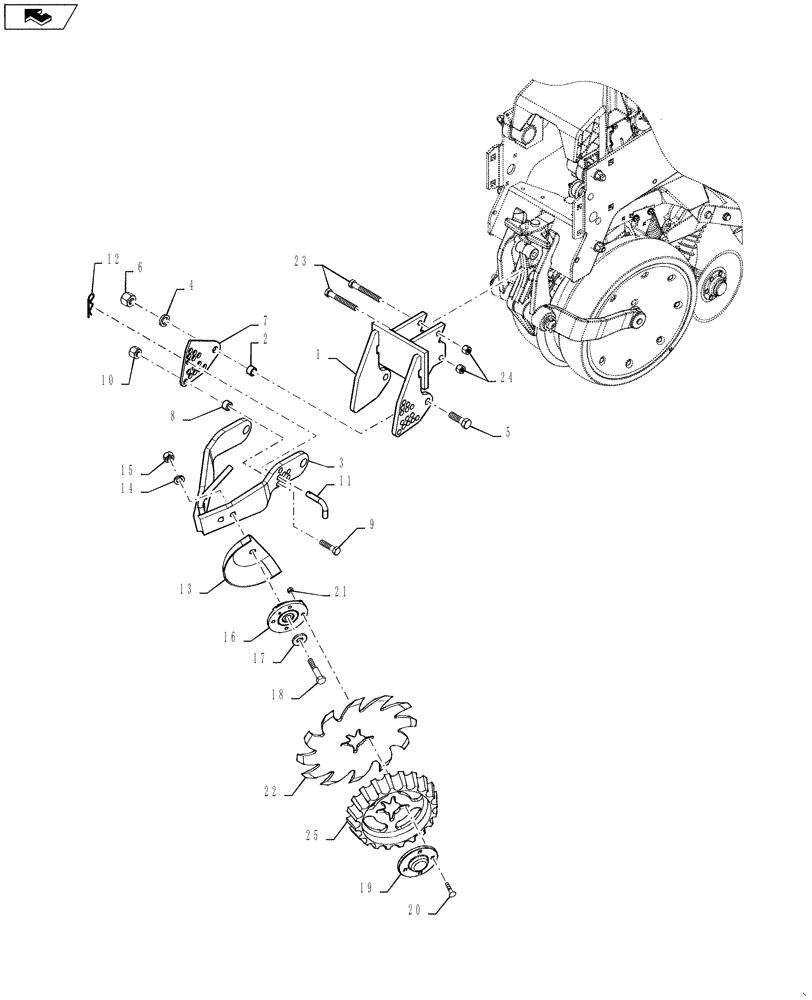

Схема запчастей Case IH 1260 - (75.200.33[01]) - ROW UNIT - RESIDUE MANAGER, NARROW (75) - SOIL PREPARATION
17
25
5
19
9
18
4
11
2
16
6
24
20
home
3
15
22
8
14
13
7
21
23
12
10
1

Артикул

Название

Примечание

Количество

1

84188626

MOUNT

short

1шт.

2

319317A1

BUSHING,16mm ID x 22.35mm OD x 14.29mm L

9/16"

2шт.

3

84188629

ARM

short narrow

1шт.

4

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

5

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

6

231-42410

LOCK NUT,5/8"-11, GB

2шт.

7

84188627

PLATE

secondary adjustment

1шт.

8

87505329

SPACER

9/16"

1шт.

9

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

87333862

NUT

1/2"-13, GB

1шт.

11

87505323

PIVOT PIN,12.7mm OD

residue manager upstop

1шт.

12

87505324

COTTER PIN

.120 Bowtie locking

1шт.

13

319179A1

SHIELD

RM combo

2шт.

14

12034871

WASHER

5/8"

2шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

16

108132A1

FLANGED BEARING

and bearing assembly

2шт.

17

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16"

2шт.

18

319458A1

BOLT

5/8"-11 x 3, G5, "D" shaped

2шт.

19

108130A1

HUB CAP

casting

2шт.

20

280623

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

26

280660

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

Residue Manager Depth Gauge

8шт.

21

87343998

LOCK NUT

5/16"-18, G8

8шт.

22

87503466

WHEEL,330.2mm OD x 6.35mm Thk

no till residue manager

2шт.

23

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

2шт.

24

86992215

LOCK NUT,1/2"-13, GC

2шт.

25

84219470

GAUGE

RESIDUE MANAGER DEPTH

2шт.

Выбрано товаров: 26
