Запчасти Case IH 1260 (75.200.31[01]) - ROW UNIT - RESIDUE MANAGER, NO-TILL (75) - SOIL PREPARATION

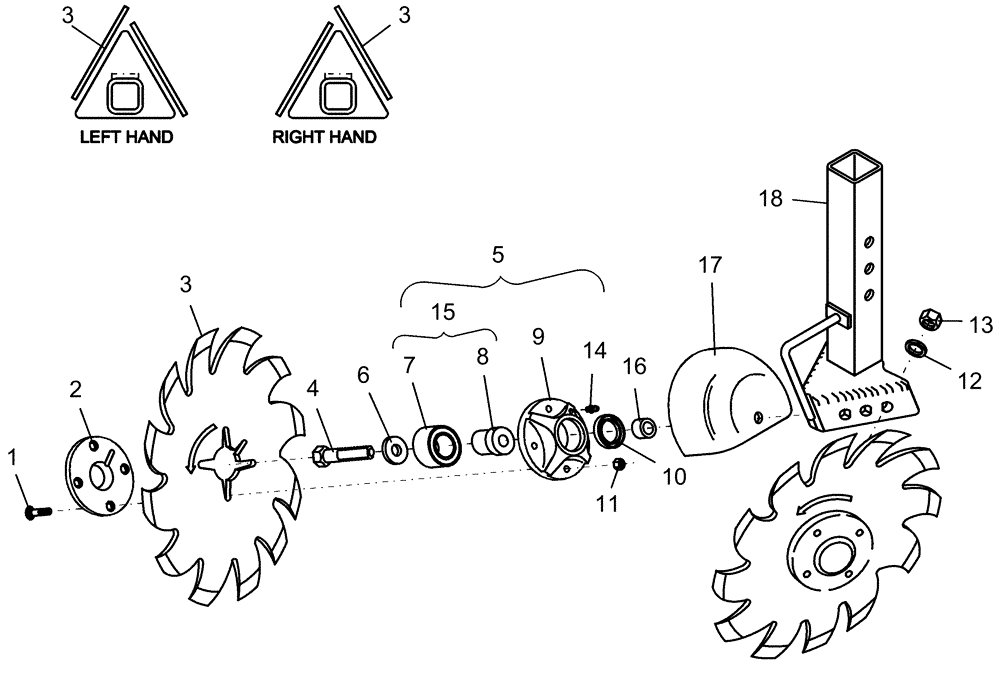

Схема запчастей Case IH 1260 - (75.200.31[01]) - ROW UNIT - RESIDUE MANAGER, NO-TILL (75) - SOIL PREPARATION
6
2
15
1
10
9
5
11
3
4
13
3
8
12
18
14
7
3
17
16

Артикул

Название

Примечание

Количество

1

280827

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

8шт.

2

108130A1

HUB CAP

casting

2шт.

3

87503466

WHEEL,330.2mm OD x 6.35mm Thk

no till residue manager

2шт.

4

135322A1

BOLT,Spcl, Hex Flg, 5/8" - 11 x 4", Gr 8

5/8"-11 x 4", G5, "D" shaped

2шт.

5

108132A1

FLANGED BEARING

and bearing assembly

2шт.

6

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16", No Longer Needed

2шт.

7

108134A1

BALL BEARING,30mm ID x 55mm OD x 22.99mm W

double row

2шт.

8

108135A1

INSERT

trashmaster bearing

2шт.

9

108136A1

HUB

4 bolt

2шт.

10

108137A1

SEAL,34.92mm ID x 47.7mm OD x 6.35mm Thk

bearing

2шт.

11

280736

NUT,5/16"-18, GC

8шт.

12

12034871

WASHER

5/8"

2шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

14

87414

LUBE NIPPLE,1/4" - 28

2шт.

15

108138A1

BEARING ASSY

with insert

2шт.

16

108139A1

SPACER

3/4"

2шт.

17

133801A2

BEARING COVER

residue manager bearing

2шт.

18

87503480

STEM

row unit attachment with handle, Years: -01-DEC-07

1шт.

18

87723401

STEM

row unit attachment with handle, Start Year: 01-JAN-08

1шт.

Выбрано товаров: 19
