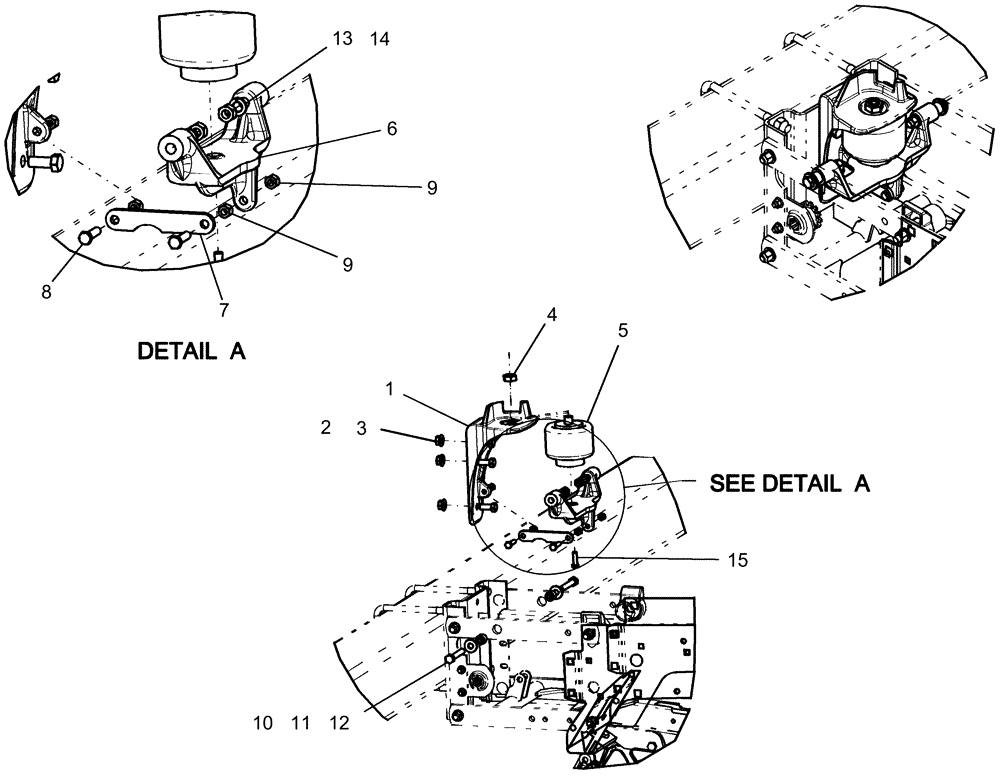

Запчасти Case IH 1260 (75.200.25) - PNEUMATIC DOWN PRESSURE - LINK SUPPORT 14" UPPER LINKAGE (75) - SOIL PREPARATION

1

87739252

BRACKET

upper air spring

1шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

3шт.

3

86512371

SERRATED NUT,Flg, USR, 1/2"-13

3шт.

4

87313

JAM NUT,Jam, 3/4"-16, G2

1шт.

5

87737172

SPRING

pneumatic 4.6" dia

1шт.

5

84250155

TEE,1/4" AIR x 1/4" AIR x 1/8" - 27 NPT

Branch, Male

1шт.

6

87739251

BRACKET

lower air spring

1шт.

7

87739253

BRACKET

pneumatic link

1шт.

8

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

87039402

NUT,3/8"-16, GB

4шт.

10

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

2шт.

11

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

12

280820

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

14

9803187

NUT,1/2"-13, G8

2шт.

15

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.
