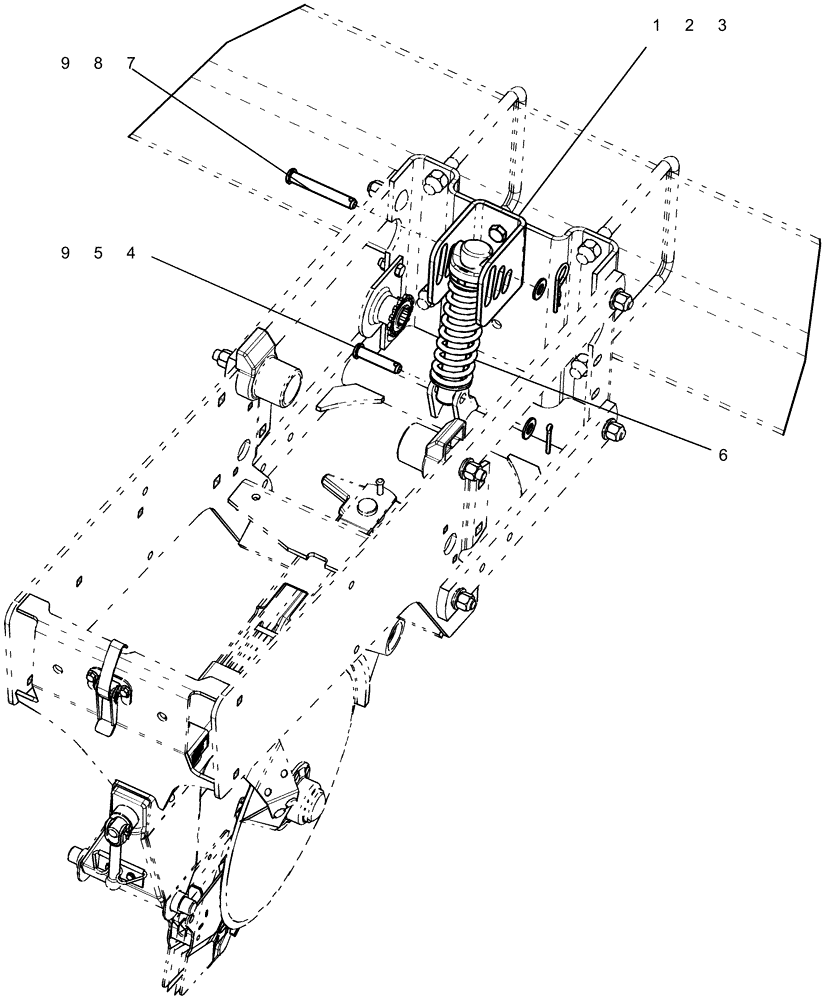

Запчасти Case IH 1260 (75.200.24) - PNEUMATIC DOWN PRESSURE - LINK SUPPORT SPRING 14" DOWN PRESSURE (75) - SOIL PREPARATION

1

87462073

BRACKET

down pressure adjustment

1шт.

2

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

3

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

4

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

1шт.

5

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

6

87462749

CARTRIDGE

down pressure spring

1шт.

7

86624062

HEADED PIN,12.7mm OD x 88.9mm L

1шт.

8

87045537

HAIR PIN COTTER

.148 x 3 5/16"

1шт.

9

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.
