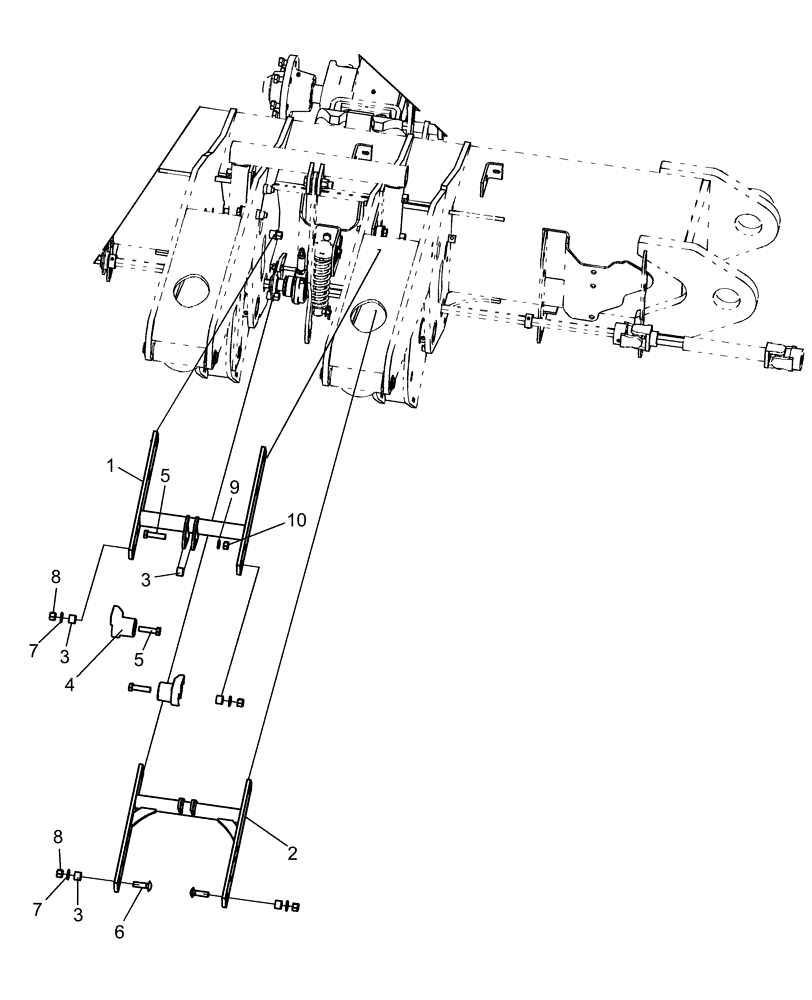

Запчасти Case IH 1260 (75.200.23) - PNEUMATIC DOWN PRESSURE - LINK SUPPORT 14" W/ LIFT ASSEMBLY (75) - SOIL PREPARATION

1

84169521

SUPPORT

Row Unit With Lift, 14"

1шт.

2

84168641

LINKAGE

lower 14"

1шт.

3

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

5шт.

4

84472130

BUSHING

hopper pivot

2шт.

5

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

6

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

7

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

8

87333862

NUT

1/2"-13, GB

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

10

280431

NUT,1/2"-13, G5

1шт.
