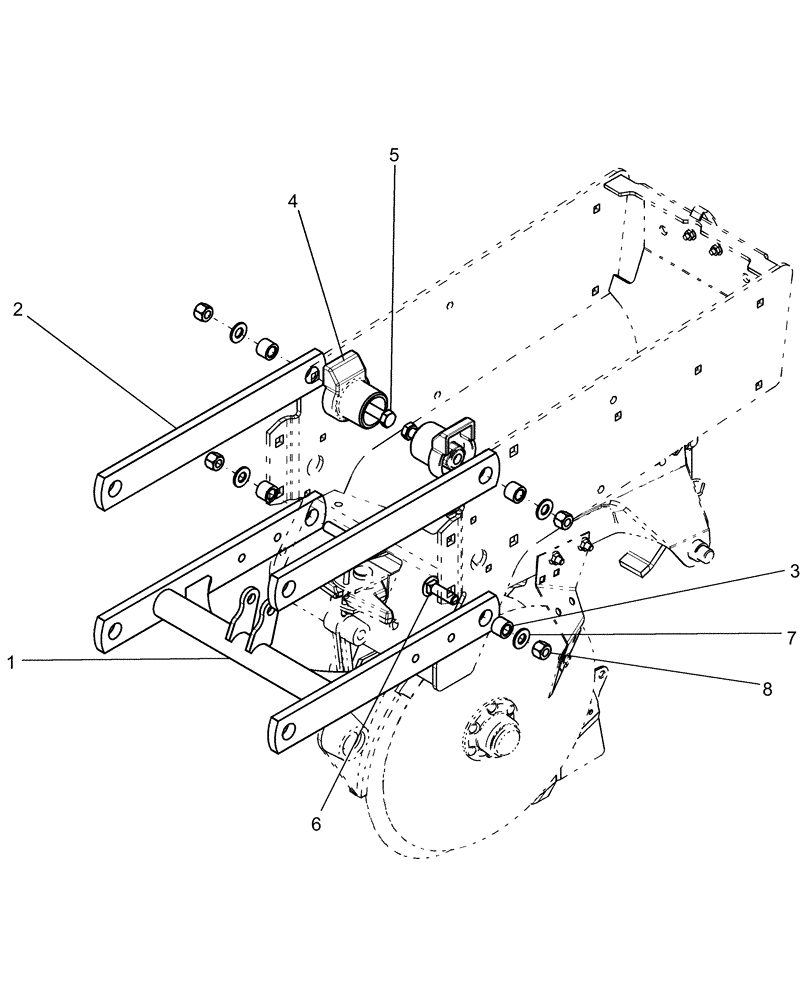

Запчасти Case IH 1260 (75.200.22) - PNEUMATIC DOWN PRESSURE - LINK SUPPORT 14" LOWER LINKAGE (75) - SOIL PREPARATION

1

87462065

SUPPORT

14" lower linkage

1шт.

1

87740251

LINKAGE

14" lower

1шт.

Not Shown

1шт.

2

87739254

BAR

14" upper

2шт.

2

87739254

BAR

14" upper

2шт.

Not Shown

1шт.

3

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

4шт.

4

84472130

BUSHING

hopper pivot

2шт.

5

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

6

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

7

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

8

86992215

LOCK NUT,1/2"-13, GC

4шт.
