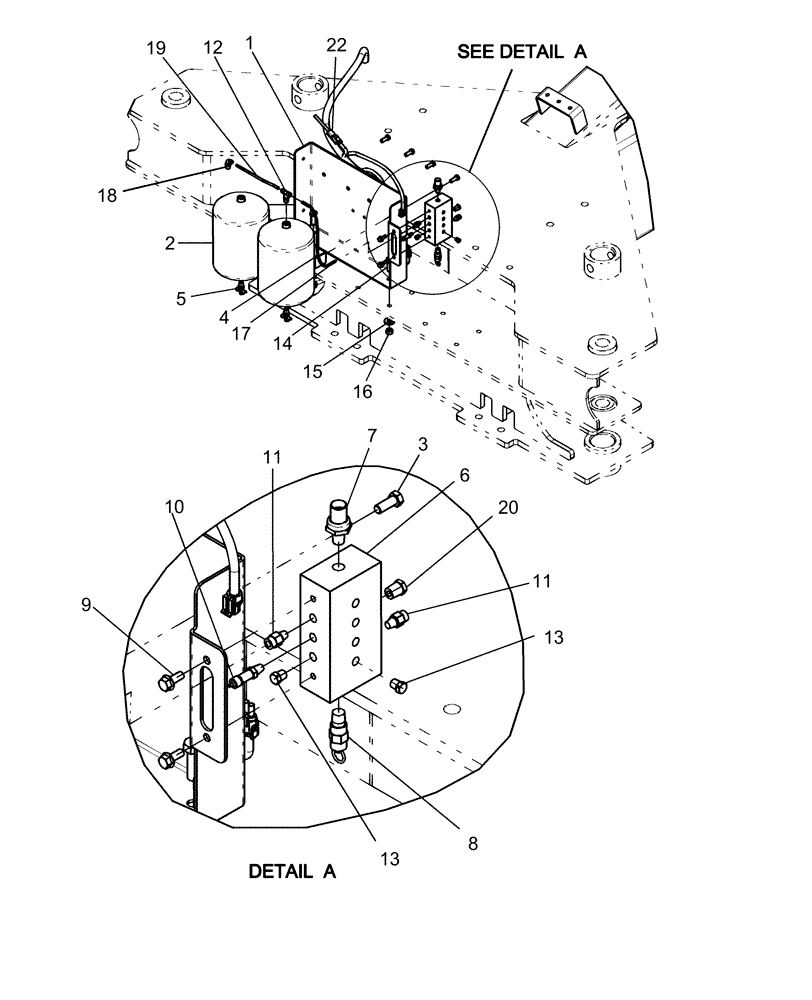

Запчасти Case IH 1260 (75.200.21) - PNEUMATIC DOWN PRESSURE - TANK MOUNTING (75) - SOIL PREPARATION

1

84158323

SUPPORT

air tanks

1шт.

2

84164053

AIR TANK

150 PSI 1.6 gallon

2шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

9628503

NUT,3/8"-16, G5

4шт.

5

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

2шт.

6

84165808

MANIFOLD

AIR - PDP and air clutch

1шт.

7

84163183

TRANSDUCER

pressure 0-150 psi

1шт.

8

84165807

VALVE PRESSURE RELIE

140 PSI

1шт.

9

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

87623685

VALVE

tank, Schrader 1/8" npt

1шт.

11

84256879

FITTING

Straight, 1/4" PTC x 1/8" npt

2шт.

12

84164949

COUPLING

1/4 NPT

1шт.

13

88071

PLUG

Hex Hd, 1/8"-27 NPTF

2шт.

14

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

15

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

16

280431

NUT,1/2"-13, G5

2шт.

17

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

1/4" x 14 3/16"

1шт.

18

84166114

90 ELBOW

1/4" NPTF x 1/4" tube

1шт.

19

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

1/4" x 14 3/16"

1шт.

20

86568834

PLUG,1/4" - 18 NPT

1шт.

21

87493975

HARNESS

air compressor

1шт.

22

84174604

HARNESS

resistor module

1шт.
