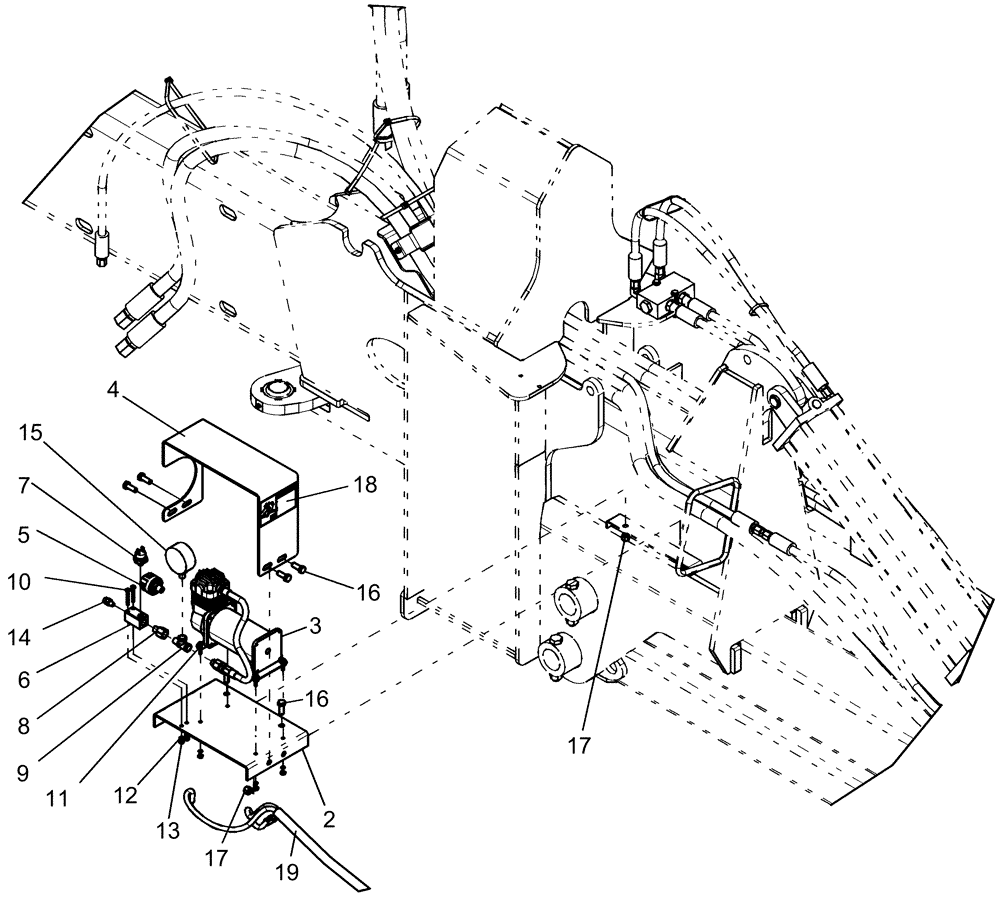

Запчасти Case IH 1260 (75.200.20) - PNEUMATIC DOWN PRESSURE - COMPRESSOR MOUNTING (75) - SOIL PREPARATION

2

84173863

BASE PLATE

compressor mount

1шт.

3

84169421

AIR COMPRESSOR

1шт.

3

47454056R

REMAN-COMPRESSOR

1260 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/10-), Reman for New PN 84169421

1шт.

3

47454056C

CORE-COMPRESSOR

Return Number

1шт.

4

84293592

SHIELD

compressor assembly, Years: -01-MAR-10

1шт.

4

84293045

SHIELD

compressor assembly, Start Year: 01-APR-10

1шт.

5

1971726C1

BREATHER,1/4" - 18

assembly, Years: -01-MAR-10

1шт.

5

84279029

BREATHER

FILTER, AIR 5 Micron, Start Year: 01-APR-10

1шт.

6

84143619

MANIFOLD

air distribution block

1шт.

7

84143639

PRESSURE SWITCH

pneumatic

1шт.

8

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

9

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1шт.

10

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

2шт.

11

463-11016

SCREW,Hex Hd, #10-24 x 1"

4шт.

12

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

6шт.

13

87304

NUT,#10-24

6шт.

14

84256879

FITTING

Straight, 1/4" PTC x 1/8" npt

1шт.

15

21380

GAUGE

pressure 0-160 psi

1шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

17

87039402

NUT,3/8"-16, GB

6шт.

18

87697284

DECAL

safety

1шт.

19

84170858

HARNESS

compressor planter

1шт.
