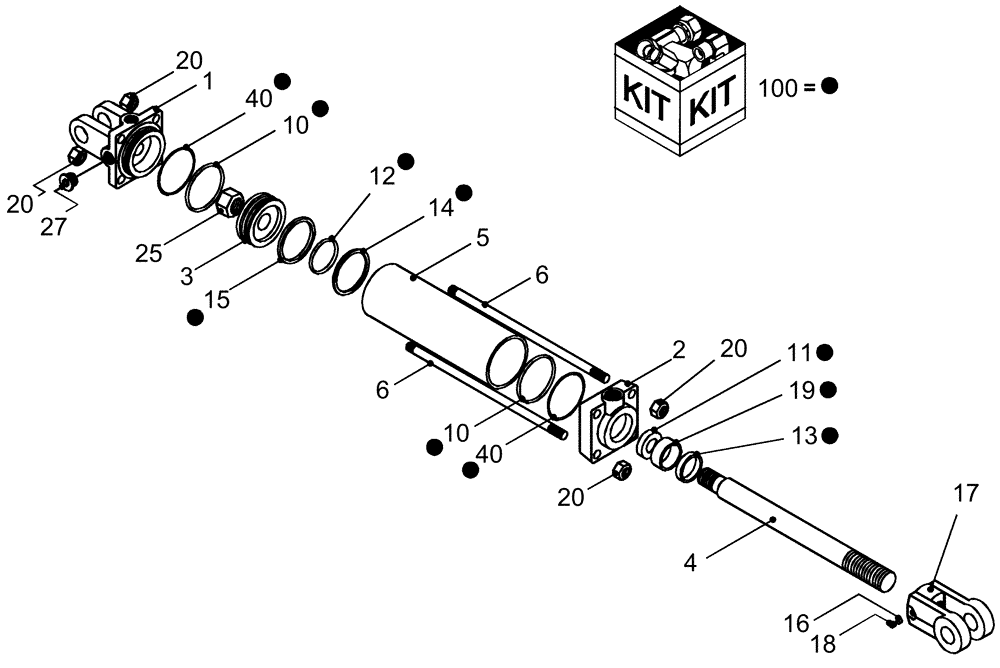

Запчасти Case IH 1260 (35.116.05) - HYDRAULIC, CYLINDER (35) - HYDRAULIC SYSTEMS

0

84282605

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

1шт.

1

87409445

HEAD

cylinder base 3" bore

1шт.

2

84147392

HEAD

6" cylinder front

1шт.

3

87409478

PISTON

cylinder 3" bore Monarch #494734

1шт.

4

8952

CYLINDER END CAP

rod 3" Monarch

1шт.

5

84283952

CLEVIS

cylinder 1" pin 1 1/4"-12 rod #492652

1шт.

6

87577798

THREADED TIE-ROD

cyl 3" & 4" x 16" Monarch 20 1/2" x 1/2"

4шт.

16

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

17

84155866

PISTON ROD

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

280431

NUT,1/2"-13, G5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

9681

SEAL KIT

3" x 8" Monarch

1шт.
