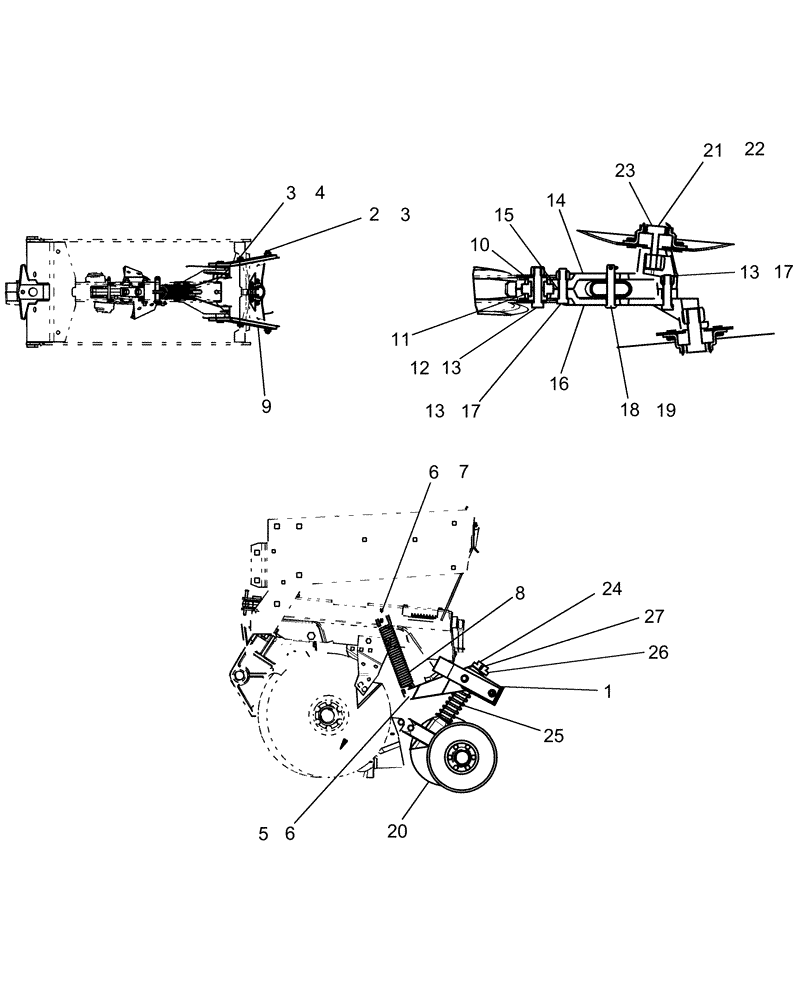

Запчасти Case IH 1260 (75.200.11) - ROW UNIT - CLOSING DISK PIVOT (75) - SOIL PREPARATION

1

436718A1

SUPPORT

Spring Anchor

1шт.

RT

1шт.

1

436718A1

SUPPORT

Spring Anchor

1шт.

Not Shown

1шт.

LT

1шт.

2

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

2шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

4

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

2шт.

5

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

6

432-1216

COTTER PIN,3/16" x 1"

2шт.

7

86624072

HEADED PIN,12.7mm OD x 69.85mm L

1шт.

8

436715A1

SPRING

E .244" wire x 1.48" od x 9.8" long

1шт.

9

NS

NOT SERVICED

BAR Press wheel

2шт.

10

1279478C1

BUSHING,9.65mm ID x 24mm OD x 13mm L

sintered.38 bore

2шт.

11

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

#BB203RR2 Torrington

1шт.

12

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

13

88902

NUT,3/8"-16

3шт.

14

436722A1

ARM

short closing disc

1шт.

RT

1шт.

14

436720A1

ARM

Pivot, Long

1шт.

Not Shown

1шт.

LT

1шт.

15

86624145

WASHER,0.47" ID x 0.75" OD x 0.03" Thk

1шт.

16

436720A1

ARM

Pivot, Long

1шт.

RT

1шт.

16

436721A1

ARM

Pivot, Short

1шт.

Not Shown

1шт.

LT

1шт.

17

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

86624080

HEADED PIN,9.53mm OD x 50.8mm L

1шт.

19

80756

COTTER PIN,1/8" x 3/4"

1шт.

20

1277891C91

DISC

assy covering

2шт.

21

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

22

231-42410

LOCK NUT,5/8"-11, GB

2шт.

23

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

2шт.

24

436732A1

GUIDE

tube assembly spring

1шт.

25

436733A1

COIL SPRING

.207" wire x 1.88" od x 6.3" long

1шт.

26

436735A1

COLLAR

guide

1шт.

27

87019

COTTER PIN,3/16" x 3/4"

2шт.
