(75.200.10[01]) - ROW UNIT - LIFT SUPPORT 30", MODEL YEAR 2010 AND BEFORE

Запчасти Case IH 1260 (75.200.10[01]) - ROW UNIT - LIFT SUPPORT 30", MODEL YEAR 2010 AND BEFORE (75) - SOIL PREPARATION

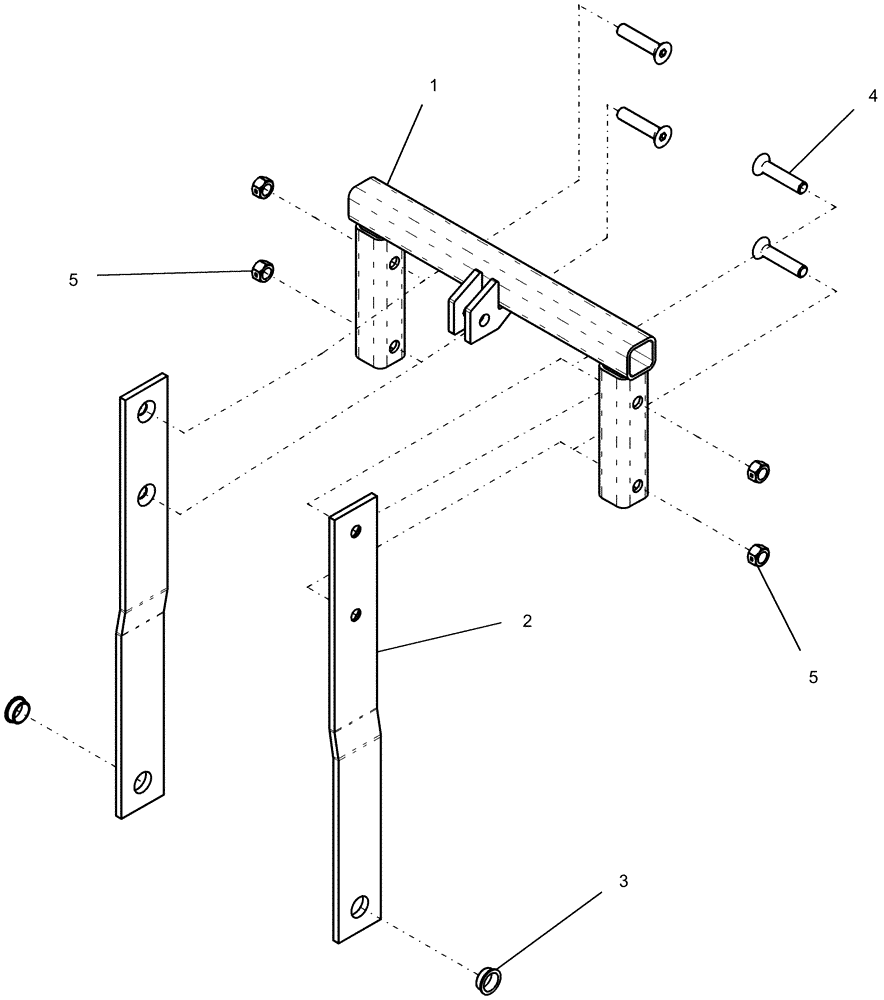

Схема запчастей Case IH 1260 - (75.200.10[01]) - ROW UNIT - LIFT SUPPORT 30", MODEL YEAR 2010 AND BEFORE (75) - SOIL PREPARATION
5
5
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84128420

BRACKET

row unit assembly 30"

1шт.

2

87708932

PLATE

row unit lift

2шт.

3

87708933

BUSHING

26 mm ID

2шт.

4

61-46248

BOLT,Flat Hd, 5/8" - 11 x 3"

4шт.

5

231-42410

LOCK NUT,5/8"-11, GB

4шт.

Выбрано товаров: 5
