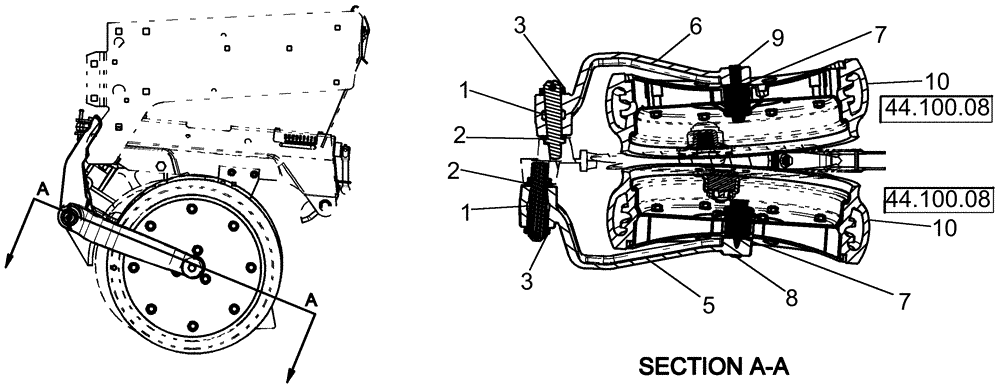

Запчасти Case IH 1260 (75.200.04) - ROW UNIT - STANDARD GAUGE WHEEL (75) - SOIL PREPARATION

1

175598A1

PIN,25.4mm OD x 120mm L

flanged 1" od hardened with 1"-12 threaded end

2шт.

2

86624173

WASHER,1.09" ID x 1.5" OD x 0.06" Thk

2шт.

3

86624174

WASHER,1.09" ID x 1.5" OD x 0.12" Thk

9шт.

4

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

5

86983484

ARM

cast gauge wheel LH

1шт.

6

86983485

ARM

cast gauge wheel RH

1шт.

7

87023159

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

41/64" x 1.047" x .134", HDN

2шт.

8

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

9

87023126

BOLT,Hex, 5/8" - 11 x 3", LH Thread, Gr 5

1шт.

10

87604747

WHEEL ASSY

4.5 X 16 gauge nylon

2шт.

See Figure 44.100.08

1шт.
